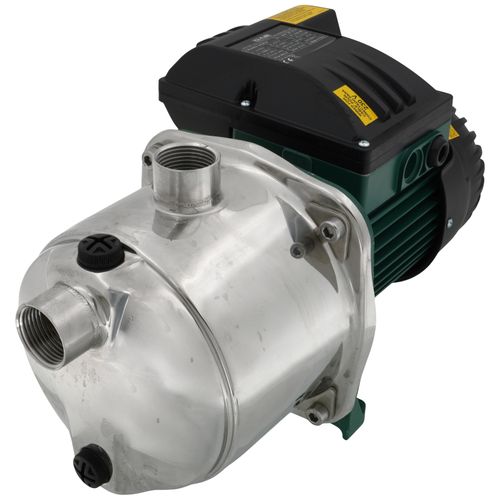

EUROINOX 40/506 M Multistage Horizontal Centrifugal Stainless Steel Pump w/ Self-Priming Disc (116 PSI, 115/230V)

DAB EUROINOX Multistage horizontal centrifugal pump, featuring extremely silent running suitable for domestic use for water supply and pressurization, irrigation of gardens and vegetable gardens, and moving water in general.

Product Features

• Euroinox: stainless steel pump body.
• Motor support in die-cast aluminium, seal holder in
• AISI 304 steel. Mechanical seal in carbon/ceramic.
• Rotor shaft in AISI 304 steel. Rotors, diffuser bodies and diffusers in technopolymer.
• Adjustment rings in stainless steel.
• Multistage centrifugal electric pump
• Pump body in stainless steel
• Self-priming up to 6 mm
• Built-in capacitor and single-phase version complete with thermal and current overload protection
• The special design make these pumps exceptionally silent-running.
• High pressures of up to 8 bar can be reached.
• Optimal motor cooling
• Reliable
• Optimal hydraulic performance

TECHNICAL DATA

• Operating Range:From 1 to 32gpm (0.6 to 7.2 m3/h) with a head up to 236ft ( 72 m) 102 psi
• Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
• Liquid temperature Range:
  • from 32°F to +95°F (0°C to +35°C )for domestic use
  • from 32 F to +104 F (0°C to +40°C )for other uses
• Maximum Suction depth: 26 ft (8 m)
• Maximum ambient temp.: 104°F (+40°C )
• Maximum operating pressure:116 psi (8 bar)
• Installation: fixed or portable in a horizontal position
• Special version:on request other voltages and/or frequencies
• Power Supply: 115v / 230v 60Hz Dual Voltage

Applications:

• Domestic Water pressurization
• Water pressurization for irrigation systems
• Pressurization of sprinklers & sprinkler systems
