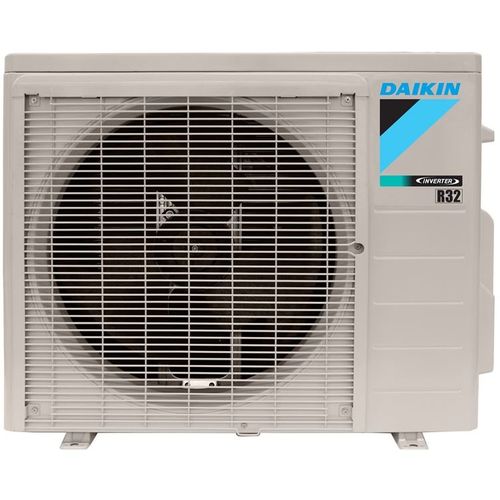

12,000 BTU Oterra 1 Zone Mini Split Air Conditioner & Heat Pump, Energy Star, R-32 (Outdoor Unit)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (1)
'/%3E%3C/svg%3E){kind=small}
Lift Gate
Product Highlights
Description
In compliance with the AIM Act of 2020, this product is designed for use with A2L appliances only. This product is NOT to be used in the installation or repair of an R410A appliances.
This product is an outdoor unit only. To complete a single-zone system, the indoor unit (FTXF12AXVJU) must be purchased separately.
Benefits:
- Energy Savings
- Worry Free Operations
- Long life of equipment
- R-32 Easy, Prove, Efficient, Available
Features:
- Inverter Technology
- Swing Compressor
- Auto Restart (after power failure)
- Self Diagnosis
- Anti-Corrosion Treatment of Outdoor Heat Exchanger
- Quiet Operations
The AHRI Reference # for this unit is 213895720.
Note: As of January 1, 2023 the US Department of Energy released a new SEER2 standard that provides manufacturers guidance in measuring the efficiency of their HVAC units.
The US Department of Energy divided the country into 3 regions (North, Southeast, and Southwest) and established energy efficient standards for each.
Please check the SEER2 site to ensure efficiency compliance for your region.
Specs
| Energy Star Rated: | Yes |
|---|---|
| Heating Capacity (BTU): | 13500 |
| Product Type: | Outdoor Unit |
| Phase: | 1 |
| Application: | Heating Cooling |
| EER2: | 12.5 |
| Cooling Capacity (BTU): | 12000 |
| Mount: | Wall |
| Model: | Oterra |
| Liquid Line: | 1/4" |
| Voltage: | 208/230V |
| SEER2: | 21 |
| Suction Line: | 3/8" |
| Max. Pipe Length (ft.): | 66' |
| HSPF2: | 10.2 |
| Number of Zones: | 1 |
| Refrigerant Type: | R-32 |
