Product Highlights
Description
Note: To directly replace this item, please purchase both 12742212 and 193B1616.

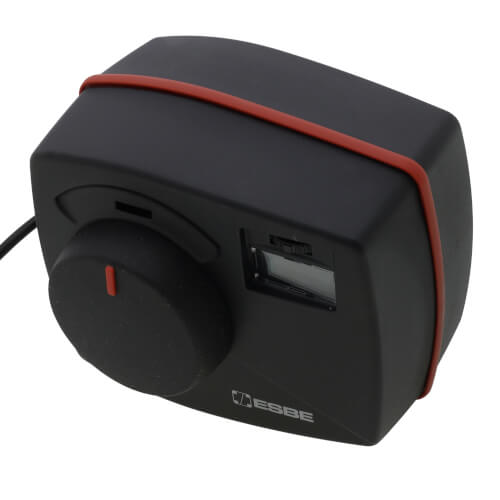

The ESBE CRA112 is a combined actuator and constant flow temperature control with an adjustable setting operation range. This constant regulation of flow temperature is an ideal controller for applications that require constant monitoring or regulation of temperature. Several application examples could involve domestic hot water, slab radiant heating, or return water temperature protection. Depending on the placement of the sensor and the piping of the CRA112 assembly, it will either be regulating the temperature by either mixing or diverting.
The compact CRA112 control mounts directly to an ESBE VRG valve body ( 1/2" to 2" only) - both 3-way and 4-way configurations. The CRA112 can also be mounted to ESBE's discontinued MG and G series valves up to 2" size
Benefits:

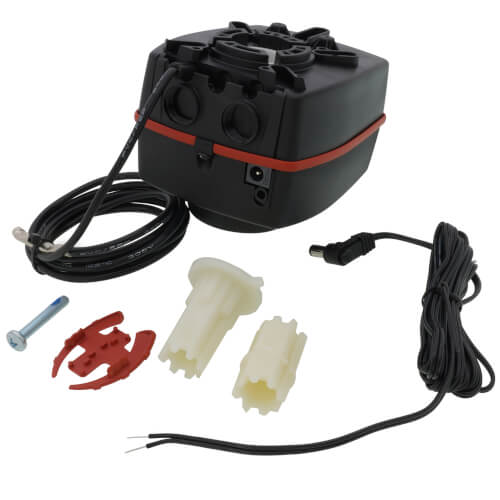

- Complete control package; actuator controller and remote sensor* included *Included sensor lead is 4.9 ft/1.5m, but available 16 ft/5m lead can be purchased (17053100)
- Simple 'push in rocker' for navigating menu
- Easy to use LCD backlit digital display
- Quickly mounts to ESBE valve bodies
- Adjustable setpoint temperature range of 41 to 203F (5 to 95C)
- Able to maintain two unique setpoint temperatures with use of an external relay (ex: 120F (49C) and 140F (60C)
Specs
| Voltage: | 24V |
|---|---|
| Torque: | 53 lb-in |
| Running Time: | 25 Seconds @ 60 Hz. |
| Rotation: | 90° rotation |
