Product Highlights
–
FNPT x FNPT Connection
1-1/2"
29.3 Cv
230°F Max Temp
-15°F Min Temp
145 MAX PSI
Description
–

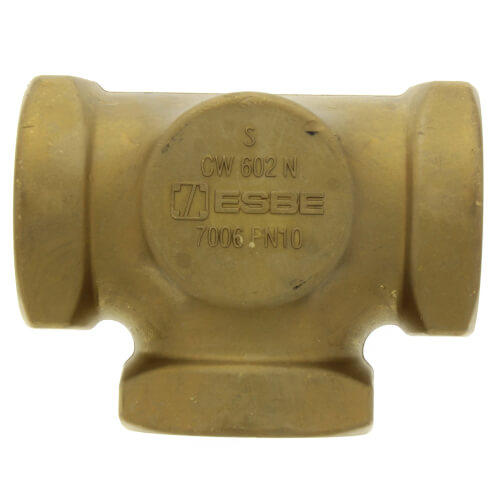

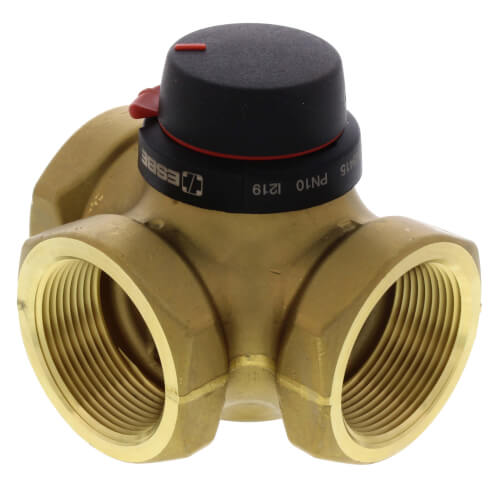

The ESBE VRG series of 3-way valves are designed to mix water to the appropriate temperature to meet the zone or system requirements within heating and cooling systems. The redesigned VRG valve replaces the MG and G series of rotary valves providing additional operational features. By either mixing or diverting, the fluid temperature leaving the valve is regulated by the VRG in either a manual operation or automatically when coupled with the ARA600 Series or 90 Series electronic motor actuator. These actuators are typically connected to an outdoor reset controller, DDC system or boilers with integrated controls.
- VRG series valves are a rotary design allowing for great flexibility in field piping layout
- Compact valve size
- Exceptionally low internal leakage rate
- Visible position indicator and knob
- Easily adaptable with ESBE electronic motor actuator styles ARA600 or series 90
- Suitable fluid: water (maximum 50% glycol) for closed loop heating or chilled systems
Specs
–
| Size: | 1-1/2" |
|---|---|
| Connection Method: | Threaded |
| Connection Type: | FNPT x FNPT |
| Min Temp (F): | -15°F |
| Max Temp (F): | 230°F |
| Flow Capacity (Cv): | 29.3 |
| Max Pressure (PSI): | 145 |
| Application: | Point of Source |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 1 review
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-1 of 1 reviews
Excellent performance
I've used 4 of these so far with the 92k2 actuator to provide low temp supply for radiant heating. I like to use these 3 and 4 way valves because they have a very high cV value.
zach
New City, NY
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: What are the actuator that can be put on this valve. I am having trouble finding them.
Asked by Andrew 11 years ago
Add your answer
Verified Reply- Supplyhouse Staffthe ARA600 Series or 90 Series electronic motor actuators.
