$268.58 each
In Stock
Get 5 Tomorrow, Jun 17
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
1-1/4"
16.2 Cv
32°F to 230°F
Female Thread Type
145 MAX PSI
Description
–
NOTE: Valve body and thermostat are sold separately. Order one valve body and one thermostat to assemble a complete valve.

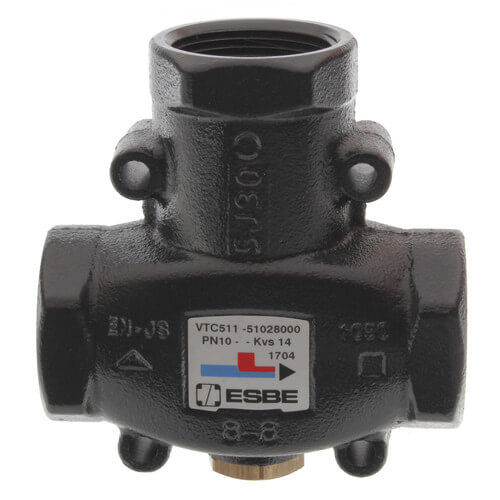

The ESBE VTC thermic valve is a thermostatic by-pass valve which regulates the temperature of either the supply out or the return of water in a hydronic heating system. In a conventional application, the VTC valve safeguards non-condensing boilers against corrosion from condensation that would result if a minimum flue gas temperature is not maintained. With the VTC the boiler is able to recover and keep up with the drop in water temperature. The VTC valve can also be used on a solid fuel boiler or a solar application where a minimum or maximum water temperature is trying to be maintained.
Features:
The ESBE VTC thermic valve is a thermostatic by-pass valve which regulates the temperature of either the supply out or the return of water in a hydronic heating system. In a conventional application, the VTC valve safeguards non-condensing boilers against corrosion from condensation that would result if a minimum flue gas temperature is not maintained. With the VTC the boiler is able to recover and keep up with the drop in water temperature. The VTC valve can also be used on a solid fuel boiler or a solar application where a minimum or maximum water temperature is trying to be maintained.
Features:
- Thermostatically maintains a high and steady return temperature increasing the life and efficiency of the heat source
- Protection from thermal shock within non-condensing boilers
- Self contained thermostatic element with no adjustment required
- Interchangeable thermostat elements, to meet temperature requirements
- Low leakage rate through the ports of the valve
- High mass non-condensing boiler coupled with low return water situations ((i.e. snow melt systems or high mass concrete radiant floor heating)
- Gravity hot water conversion systems
- Solid fuel boilers feeding storage tanks or a heating system
- Solar heating and stratification control for storage tank
Specs
–
| Size: | 1-1/4" |
|---|---|
| Flow Capacity (Cv): | 16.2 |
| Thread Type: | Female |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Max Pressure (PSI): | 145 |
| Temperature Range (F): | 32°F to 230°F |
| Application: | Accessory |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 4 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-4 of 4 reviews
ESBE Series 1-1/4" 3-Way Thermic Valve (Body Only)
we just installed it, so far don't have any complaints
Eddie
New York
7 years ago
Verified Buyer
Was this review helpful to you?
A must have for all wood boilers
I had the old style Danfoss in service which was starting to go beyond its years. I wasn't crazy about the idea that they no longer supply parts for the old style, but I do see the new design reduces the replacement parts cost and is much more responsive compared to the old model. I am making hot water much more efficiently now without over-temping the boiler. The size is slightly different, but my screw piping arrangement flexed into the new valve without any modifications.
G
Northeast Ohio
9 years ago
Was this review helpful to you?
Great product
I used the valve to keep my wood boiler at 140F.
Andy
Ohio
11 years ago
Verified Buyer
Was this review helpful to you?
So much better than the old one
We used this to replace one of the old ESBE thermal boiler bypass tees that just wasn't opening anymore and replacement elements are no longer available. Hardest part was getting the piping adjusted as the new one has slightly different dimensions (~1/4" longer one way and ~1/4" shorter the other). It is also mounted in an iron pipe installation, so that wasn't any fun. BUT, apart from the installation issues, (not the gadgets fault) it worked great. Turned it on and for a few minutes, it was obvious that all the heat was recirculating to the boiler. As the boiler heated up, the heat began to move toward the load without letting the boiler cool. Sweet!
5 stars for a new installation, 4 stars for a retrofit due to the dimensions being different from the old ones, a design oversight in my view.
Watcher
Portland, OR
11 years ago
Verified Buyer
Was this review helpful to you?
