Product Highlights
–
120v
20 Amps
10 Year Limited Warranty
Description
–

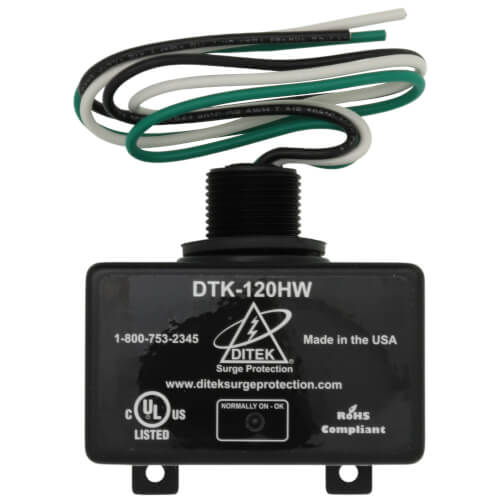

The DTK-120HW provides surge protection for 120VAC equipment panels and dedicated branch circuits. The compact, parallel-mount design allows for installation in a variety of locations.
Product Features:
Product Features:
- Approved for 20A circuit breakers
- SCCR rating of 10kA complies with NEC Article 285.6
- NEMA 4X weatherproof enclosure allows for use in harsh environments
- UL1449 Listed Type 1 SPD
- Diagnostic LED
- Connection Method: 3/4" NPT Male, 18-inch 12 AWG Leads
- Housing: NEMA 4X Polycarbonate
- Operating Temperature: -31°F - 176°F
- Maximum Humidity: 95% non-condensing
- Dimensions: 3.5" L x 1.89" W x 3.4" H
- Weight: 0.55 lbs
- Certifications: UL1449 4th Edition, CSA C22.2 No. 269.1-17
- SPD Type: Type 1
Specs
–
| Product Type: | Surge Protector |
|---|---|
| Voltage: | 120v |
| Operating Temp Range: | -31°F to 176°F |
| Phase: | 1 |
| Max Surge Current: | 10kA |
| Enclosure Type: | NEMA-4X |
| Amperage: | 20 |
| Warranty: | 10 Year Limited |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.5 out of 6 reviews
83% would recommend this product
5 star
67%
4 star
17%
3 star
17%
2 star
0%
1 star
0%
Showing 1-6 of 6 reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Won't work with Arcfault or GFI circuits
Wanted a single phase for my barn light but it's on a circuit with AFCI. This device must have a slow current draw across neutral to ground, so it trip my breaker. Wasn't willing to riskl a barn fire for the outlets on this circuit to install this with a regular circuit breaker so gave up on extra protection for my outside barn light and sight install this at the timer.
Loracekim
MN
1 months ago
Verified Buyer
Was this review helpful to you?
Exactly what I ordered. Delivered very quickly
Was used to protect DH circuit for cell phone connection on fire alarm system.
Electrician
Mid-Hudson valley, NY
6 months ago
Verified Buyer
Was this review helpful to you?
works fine, not a lot of 120v options out there
functionally this is fine, but: 1) it should just come with a locknut. 2) the wire leads are too short to be useful in most panels, decent chance you will have to splice an extension, or pigtail before your lugs (in a small equipment panel).
roc
alabama
12 months ago
Verified Buyer
Was this review helpful to you?
Prompt delivery, great price
Exactly what I ordered. Great pricing and prompt delivery. Couldn't ask for anything more!!
PadAir
West Paducah, KY
2 years ago
Verified Buyer
Was this review helpful to you?
Great option for a mini-split
Installed on the condenser for a Senville (Midea) mini-split heat pump. Inexpensive protection for expensive components.
db
GA
3 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again.
I used this to protect a mini-split circuit. Works great and easy to install.
Mike
Spring Hill, FL
3 years ago
Verified Buyer
Was this review helpful to you?
