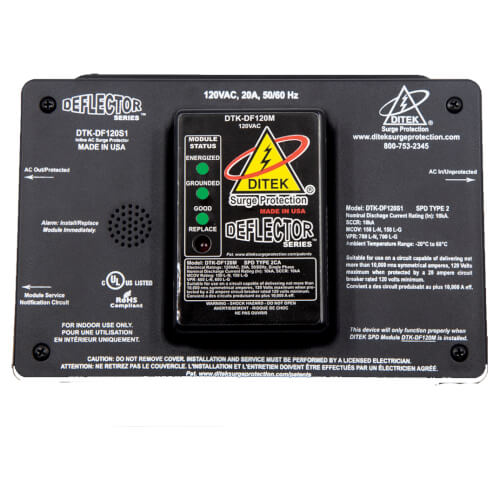

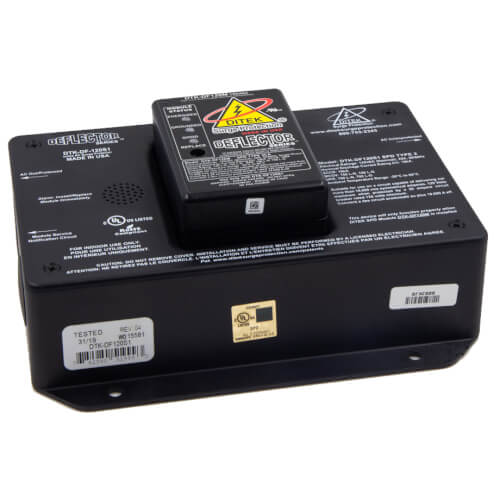

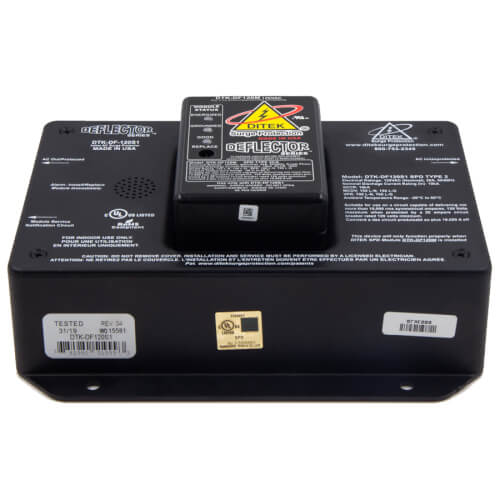

Series Connected Surge Protector with Dry Contacts and Audible Alarm (120V)

Visual, audible, smart. DITEK's Deflector DTK-DF120S1 sets a new standard for 120VAC Power protection. Its patented design provides maximum critical load protection by minimizing AC supply voltage spikes and isolating incoming surges that originate from lightning or other sources.
Features:

• Audible alarm sounds when protection is compromised or protection module is removed
• Separate LED indicators for power, ground and protection status
• Rapid-Replacement modules for ease of installation
• Dry contacts for remote notification when service is required
• UL1449 Listed Type 2 SPD
• UL1283 EMI/RFI noise filtering ensures clean power to connected equipment

Specifications:

• Voltage Configuration: 120VAC Single (2W + G)
• MCOV: 150V
• Protection Modes: L-G, L-N, N-G
• Voltage Protection Rating: 700V L-G, L-N; 1200V N-G
• Surge Current Rating: 50,000A
• Max. Continuous Current: 20A
• SCCR: 10,000A
• Nominal DIscharge Current Rating (IN): 10kA
• Operating Frequency: 50/60Hz
• EMI/RFI Filtering Attenuation: Up to 35dB, 100kHz – 100MHz
• Audible Alarm dB Level: 80dB @ 1' (MAX)
• Connection Method: Mechanical lugs, 12 AWG max 3/4" NPT pre-drilled holes In/Out
• Housing: ABS
• Operating Temperature: -13F - 140F (-25C - 60C)
• Maximum Humidity: 95% Non-Condensing
• Certifications: UL1449 4th Edition, UL1283 CSA C22.2 No. 269.2-17
• SPD Type: Type 2
• Standards Compliance: IEEE C62.41.1 –2 and C62.45
• Warranty: 10 Year Limited
