$675.10 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (3)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–

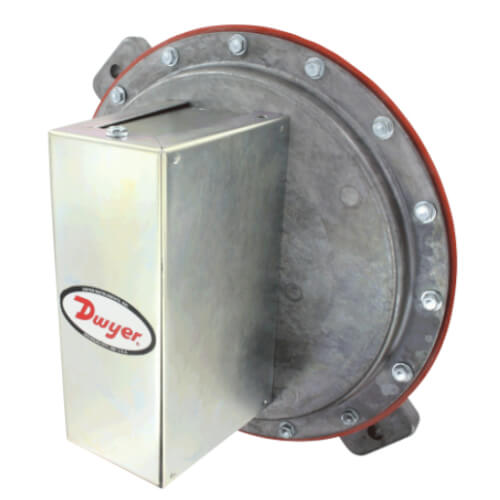

Single and dual pressure switch, range .15-1.5" w.c., .10 min. deadband, .20 max. deadband, 0.5 adj. diff. between set points.
Features:
Specifications:
Features:
- Single or dual action switches support consistent designs with similar models, but with the ability to match specific application needs
- Sealed diaphragm provides leak-proof construction for high accuracy and precision control
Specifications:
- Service: Air and non-combustible, compatible gases.
- Temperature Limits:-30 to 130°F (-34.4 to 54.4°C)
- Pressure Limits: Max. 50 in. w.c. (12.44 kPa) continuous, 2 psig (13.79 kPa) surge
- Switch Type:1626: SPDT; 1627: (2) SPDT
- Repeatability:±1%.
- Electrical Rating:15 A @ 120 to 480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz
- Electrical Connections:3 screw type, common, normally open and normally closed
- Process Connections:1/8" female NPT
- Mounting Orientation: Diaphragm in vertical position
- Set Point Adjustment: Screw adjustment
- Agency Approvals: CE
Specs
–
| Product Type: | Pressure Switch |
|---|---|
| Switch: | SPDT |
