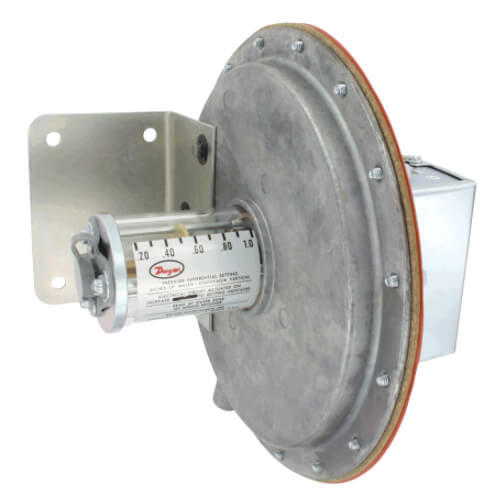

Large Diaphragm Pressure Switch, Visual Set Point, SPDT (.2" - 1.0" W.C.)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$772.05 each
In Stock
Get 3 Wed, Jul 8
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Description
–
Large diaphragm pressure switch, range 0.20-1.0" w.c., approx deadband @ 0.04 min. set point, 0.06 max. set point.
Features:
Specifications:
Note: FOR USE ONLY WITH AIR OR COMPATIBLE GASES
Features:
- Visible set point indicator simplifies operation and trouble shooting
- Large diaphragm provides low range accuracy providing precise control
- Current loads of up to 15 amps supports most small electrical loads supporting a broader range of HVAC and Process applications without the need for additional relays and components
Specifications:
- Service: Air and non-combustible, compatible gases.
- Temperature Limits: -30 to 110°F (-34.4 to 43.3°C).
- Pressure Limits: 10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge.
- Switch Type: SPDT
- Repeatability:±1%.
- Electrical Rating:15 A @ 120-480 VAC, 60 Hz. Resistive, 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz
- Electrical Connections:3 screw type, common, normally open and normally closed
- Process Connections:1/8" female NPT
- Mounting Orientation: Diaphragm in vertical position
- Set Point Adjustment: Screw type with enclosed scale
- Agency Approvals: CSA, FM, UL
Note: FOR USE ONLY WITH AIR OR COMPATIBLE GASES
Specs
–
| Product Type: | Pressure Switch |
|---|---|
| Switch: | SPDT |
