Low Differential Pressure Switch, SPDT (.15" - .5" W.C.)

Low Differential Pressure Switch, SPDT (.15" - .5" W.C.)

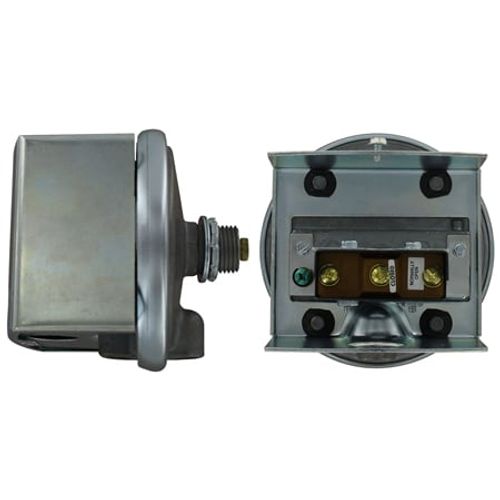

Essential for industrial environments, the Series 1800 Low Differential Pressure Switch for general industrial service combines small size and low price with 2% repeatability for all but the most demanding applications. Set point adjustment inside the mounting stud permits mounting the switch on one side of a wall or panel with adjustment easily accessible on the opposite side. UL and CSA listed, and FM approved.

Applications:

• Process applications
• Mechanical equipment control

Features:

• Compact size and repeatability provide a high-value switch for many industrial applications
• Designed for panel and wall mounting to easily meet mounting requirements in most industrial settings
• Pressure ranges from 0.07 in w.c. to 85 in w.c. make this switch suitable for a wide range of applications

Specifications:

• Service:Air and non-combustible, compatible gases.
• Wetted Materials:Consult Factory.
• Temperature Limits:-30 to 180°F (-34 to 82.2°C). 1823-00, -20 to 180°F (-28.9 to 82.2°C).
• Pressure Limits:10 psig (68.95 kPa) continuous, 25 psig (172.4 kPa) surge.
• Switch Type:Single-pole double-throw (SPDT).
• Repeatability:+/-2%.
• Electrical Rating:15 A @ 120-480 VAC, 60 Hz. Resistive 1/8 HP @ 125 VAC, 1/4 HP @ 250 VAC, 60 Hz. De-rate to 10 A for operation at high cycle rates.
• Electrical Connections:3 screw type, common, normally open and normally closed.
• Process Connections:1/8" female NPT.
• Mounting Orientation:Diaphragm in vertical position. Consult factory for other position orientations.
• Set Point Adjustment:Screw type inside mounting spud.
• Weight:1 lb, 5 oz (595 g).
• Agency Approvals:CE, CSA, FM, UL. NOTE: Optional (-EXPL) Explosion-proof Enclosure does not possess any agency approvals.
