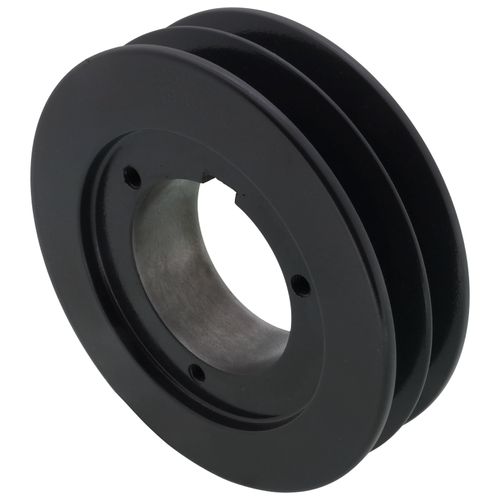

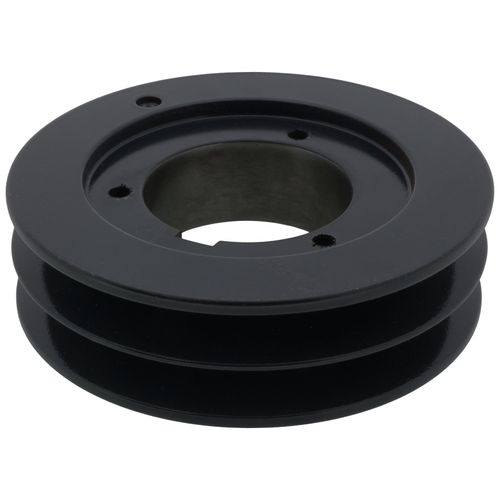

2 Groove Cast Iron Split Taper Sheave, A, B, 5V Belt, 5.88" OD2B5V56 2 Groove Cast Iron Split Taper Sheave, A, B, 5V Belt, 5.88" OD
Free Shipping This item ships free
Need replacement parts for this unit?
Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L & 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers.
Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives.
Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub.
New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material.
- Type: Split Taper Sheave
- Bore Size: 2.4375
- Bushing Used: B
Split Taper Sheave
A B 5V
