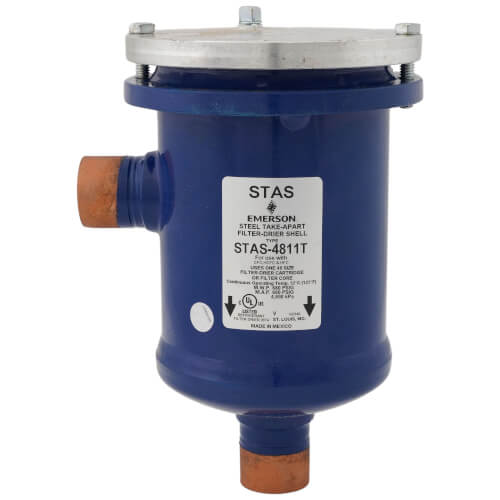

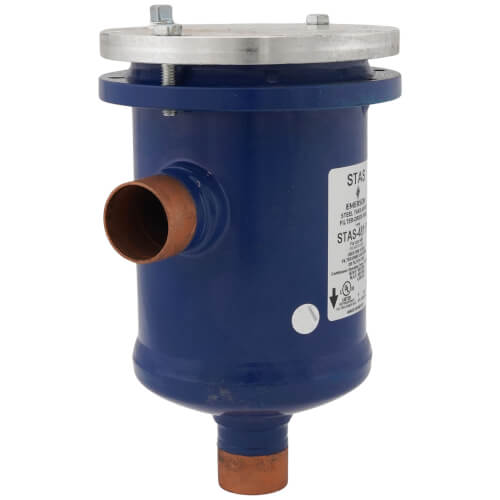

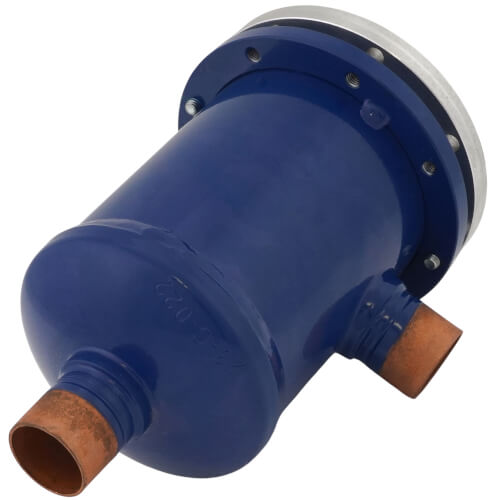

1-3/8" ODF STAS4811T-Series Steel Liquid and Suction Line Filter Drier (48 Cubic Inches)
053007 1-3/8" ODF STAS4811T-Series Steel Liquid and Suction Line Filter Drier (48 Cubic Inches)
Free Shipping This item ships free
Need replacement parts for this unit?
The STAS is a replaceable core Filter Drier for CFC, HCFC, and HFC refrigerants for use in large commercial air conditioning and refrigeration systems.
Features:
- Slotted cover/unique internal hardware for hassle-free installation
- Full flow fittings for low pressure drop
- Corrosion resistant epoxy powder paint finish
- Sturdy steel shells for long life
- Solid copper connections
- 100 mesh outlet screen
Specifications:
- Filtration (with core): 40 microns
- Maximum working pressure:
- SV version = 500 psig
T version = 680 psig - UL/CUL file number: SA7175
| Product Type: |
Filter Drier |
| Connection Size: |
1-3/8" |
| Cubic Inches: |
48 |
| Connection Type: |
ODF |
| Type: |
Suction Line Liquid Line |
| Refrigerant Type: |
R-507 R-22 R-404A R-407C |
