Description

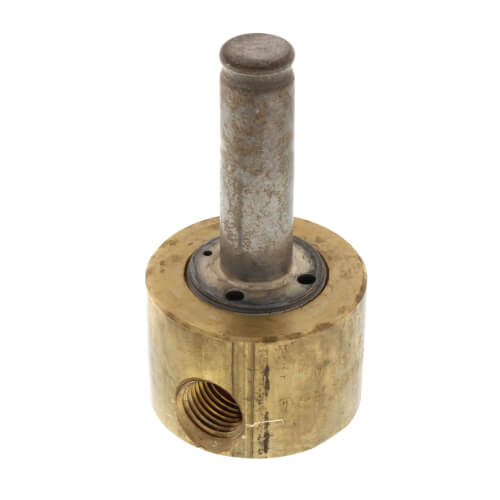

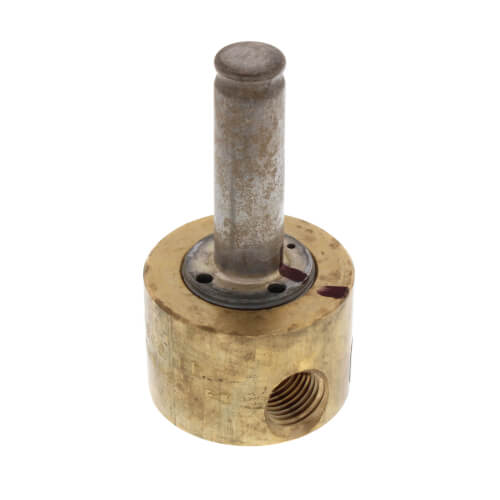

1/4" NPT 204CD1/4B1/8B Direct-Acting Unidirectional Valve (0.34 Cv)

The 204CD is a direct-acting unidirectional, normally closed valve for air, water and steam applications.

Features:
  • Superior life with stainless steel enclosing tubes
  • Repair kits available

Options:
  • Brass or stainless steel bodies
  • Optional Voltages: 12 or 24 VDC & 120-240,
        480 & 240-480/50-60 Hz

Specifications:
  • 1/4? NPT Solenoid Valve
  • Watts: 12 A.C., 15 D.C.
  • VA Inrush: 31
  • VA Holding: 19
  • Maximum working pressure: 500 psi
  • Weight: 1 lb. 3 oz.
  • Standard Voltages: 24, 120, 208-240/50-60 Hz
  • UL/CUL file number: MP604
Read more
Specs
Connection Size:
1/4"
Connection Type:
Threaded
Features:
Direct-Acting
Body Pattern:
Unidirectional
Features:
Class F
Max. Working Pressure:
500 psi
Max Fluid Temp:
180°F (AC)
Flow Capacity (Cv):
0.34
Elastomer Material:
BUNA-N
×
