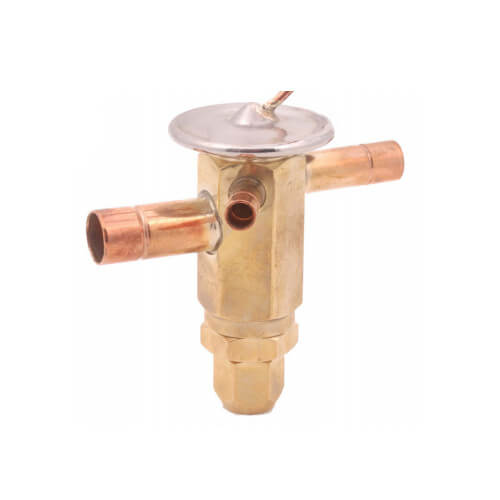

3/8" x 1/2" ODF S/T AAEB-Series without Internal Check Valve (3 Ton)

Inlet: 3/8"
Outlet: 1/2"
Charge: HCA
Refrigerant: R-22 and R-407C
Capillary Length: 30"

ODF S/T AAEB-Series without Internal Check Valve (3 Ton)

The A-series is used for heat pump, air conditioning, food services and commercial applications.

Features:

• Stainless steel power element eliminates corrosion and prevents valve failure
• Hermetic, leak-free construction
• Compact size allows installation in limited spaces
• Mass spectrometer tested to ensure less than 0.10 oz/year external leakage rate

Options:

• ZW195 charge available for R-410A systems
• Adjustable or non-adjustable superheat
• SAE or ODF connections standard ? Chatleff or Aeroquip are available
• External or internal equalizer
• Internal check valve allows reverse flow for heat pump applications, eliminating the need for external piping and external check valve
• Bleed type pressure equalization to accommodate PSC type compressors
• Pressure limiting charges (MOP) available

Specifications:

• Maximum working pressure: 700 psig
• UL/CUL file number: SA 5312
