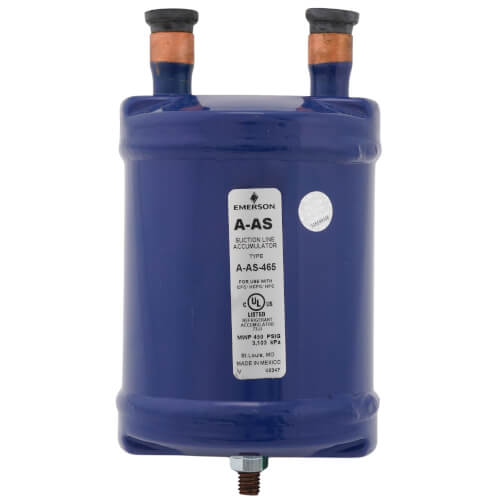

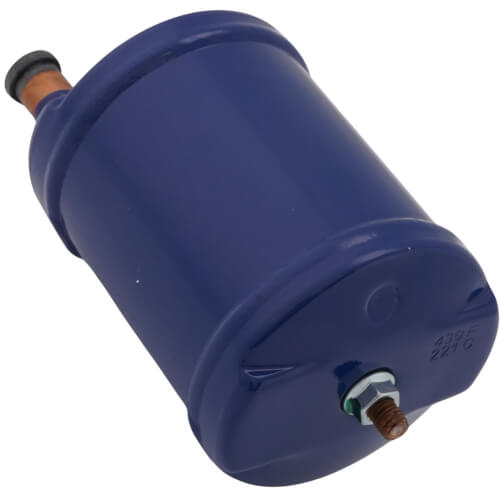

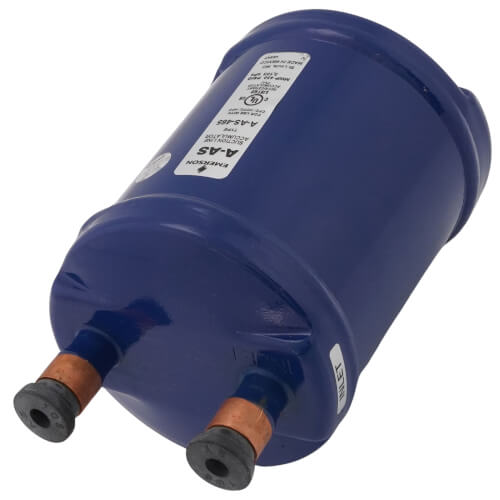

5/8" Series-A-AS-4-65 Suction Accumulator

The A-AS protects the compressor from liquid slugging and is used with CFC, HCFC, and HFC refrigerants. It is available for systems through 28 tons nominal capacity.

Features:
  • Designed to operate in a range of +40°F to -40°F evaporator temperature
  • Fusible plug on larger diameter units
  • Solid copper connections
  • Corrosion resistant epoxy powder paint finish
  • Inlet deflector directs refrigerant flow to prevent internal splashing and aid in the collection of refrigerant oil

Specifications:
  • Maximum working pressure: 300 psig
  • Fusible plug temperature: 430°F
  • UL/CUL file number: SA 10225
Read more
Manuals (1)
Specs
Product Type:
Accumulator
Type:
Suction Accumulator
Max. Working Pressure:
300 PSI
Connection Size:
5/8"
Diameter (Inches):
4"
Height (Inches):
6
Fitting Separation (inches):
2.50"
×
