Emerson Flow Controls Thermal Expansion Valves
TRAE+ Series Thermal Expansion Valves

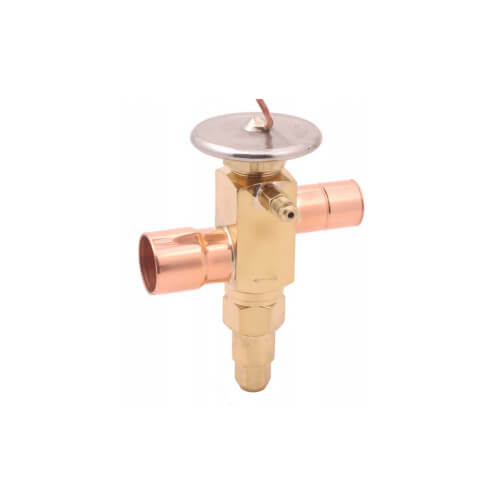

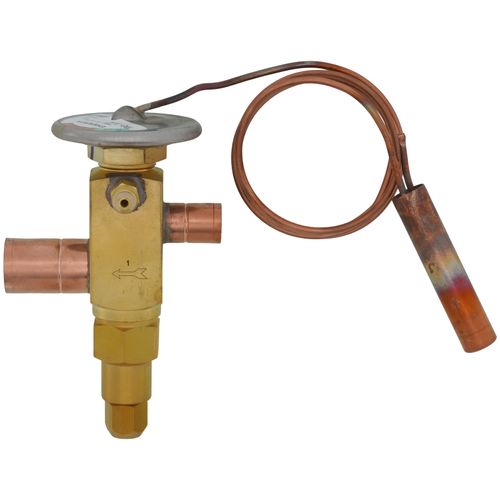

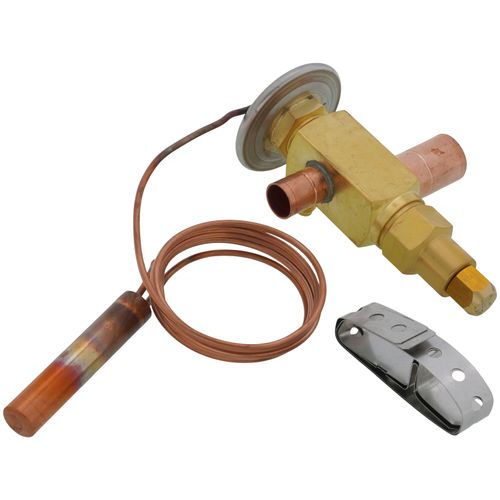

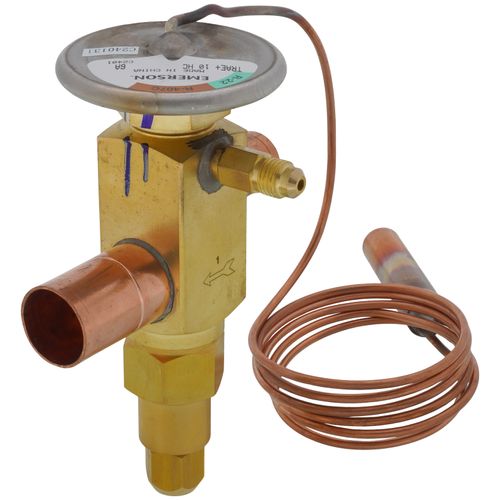

5/8" x 7/8" ODF S/T TRAE+Series Double Balanced Valve (10 Ton)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$188.41 each
Out of Stock
Get it Thu, Apr 6 - Thu, Apr 13
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
5/8"
7/8"
ODF S/T Connection
R-22, R-134A, R-407C, R-404A
10
Description
–
Inlet Size: 5/8"
Outlet Size: 7/8"
ODF S/T TRAE+Series Double Balanced Valve (10 Ton)
The TRAE Plus series is a large capacity valve designed for refrigeration, air conditioning, heat pump, and chiller applications.
Features:
Specifications:
Outlet Size: 7/8"
ODF S/T TRAE+Series Double Balanced Valve (10 Ton)
The TRAE Plus series is a large capacity valve designed for refrigeration, air conditioning, heat pump, and chiller applications.
Features:
- Stainless steel power element eliminates corrosion and prevents valve failure
- Suitable for Bi-Flow applications
- Replaceable power element and cage assembly for full serviceability
- Double balanced port design improves operation and stability over wide loads and evaporator temperature ranges
- Square body with straight-thru connections
- Solid copper connections
- External superheat adjustment
- Large diaphragm provides superior stability
- Permanent inlet strainer
- Cages
Specifications:
- Maximum working pressure: 450 psig
- Torque Power Assembly: 375 - 425 in. lb.
Specs
–
| Inlet Size: | 5/8" |
|---|---|
| Outlet Size: | 7/8" |
| Connection Type: | ODF S/T |
| Product Type: | Double Balanced Valve |
| Refrigerant Type: | R-22 R-134A R-407C R-404A |
| Features: | Externally Equalized |
| Max. Working Pressure: | 450 psi |
| Capillary Length: | 5 ft. |
| Ton: | 10 |
