Connection Size: 1/4"
Connection Type: SAE
Refrigerant Type: R-404A

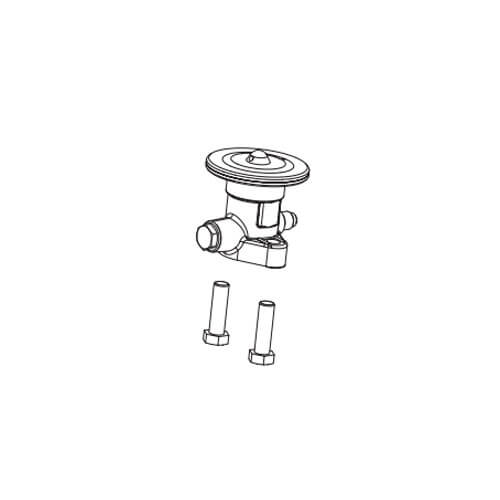

T-Series Large Capacity Power Assembly (10 Ft. CAP)
The T-series Take-Apart valves, with adjustable superheat and replaceable, interchangeable components are ideal for original equipment and field replacements in air conditioning, heat pump, and refrigeration applications.
- Take-Apart construction for easy field service
- External superheat adjustment
- Bi-Flow capability
- Stainless steel power assembly up to 18 tons
- Interchangeable, replaceable cages
- Interchangeable body flanges
- Interchangeable power assemblies
- 1/4 to 100 tons capacity
- Maximum working pressure: 450 psig
- Torque Bolts: 300 in. lb.
