Description

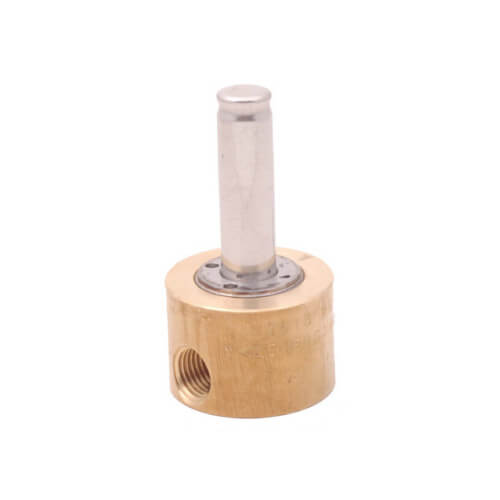

5/32" Direct-Acting Unidirectional Normally Closed Valve (0.48 Cv)

The 204CD is a direct-acting unidirectional, normally closed valve for air, water and steam applications.

Features:
  • Superior life with stainless steel enclosing tubes
  • Repair kits available

Options:
  • Brass or stainless steel bodies
  • Optional Voltages: 12 or 24 VDC & 120-240 / 480 & 240-480/50-60 Hz

Specifications:
  • 1/4? NPT Solenoid Valve
  • Watts: 12 A.C., 15 D.C.
  • VA Inrush: 31
  • VA Holding: 19
  • Maximum working pressure: 500 psi
  • Weight: 1 lb. 3 oz.
  • Standard Voltages: 24, 120, 208-240/50-60 Hz
  • UL/CUL file number: MP604
Read more
Specs
Connection Type:
Threaded
Connection Size:
1/4"
Flow Capacity (Cv):
0.48
Features:
Pilot Operated
Body Pattern:
2-Way
Unidirectional
Max. Working Pressure:
500 psi
Features:
Direct-Acting
Elastomer Material:
E.P. Seat
Position:
Normally Closed
×
