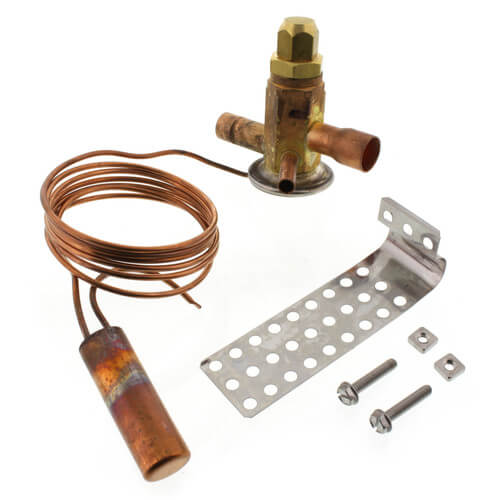

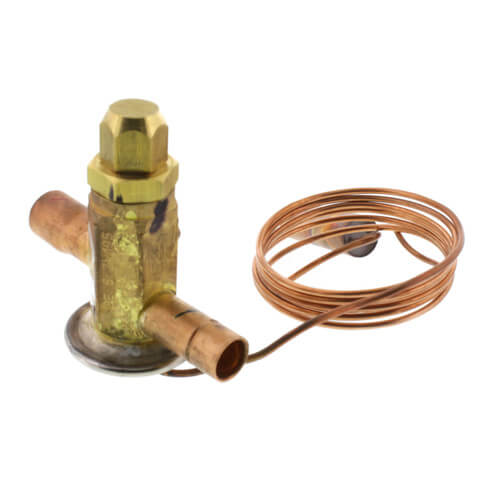

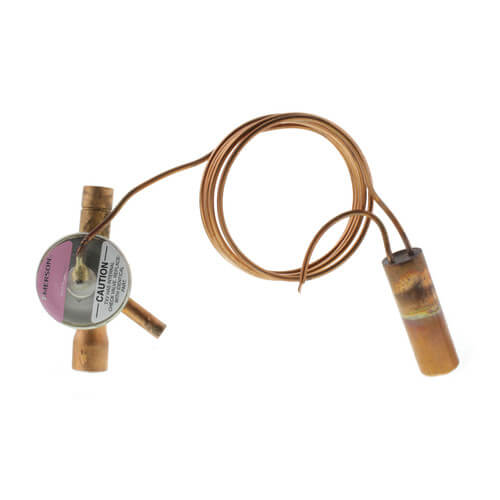

1/2" x 5/8" ODF S/T 6A AACE-Series w/ Internal Check Valve (5 Ton)

Inlet: 1/2"
Outlet: 5/8"
Connection Type: ODF S/T
Refrigerant Type: R-410A
Charge: ZW195

AACE-Series w/ Internal Check Valve (5 Ton)

The A-series is used for heat pump, air conditioning, food services and commercial applications.

Features:

• Stainless steel power element eliminates corrosion and prevents valve failure
• Hermetic, leak-free construction
• Compact size allows installation in limited spaces
• Mass spectrometer tested to ensure less than 0.10 oz/year external leakage rate

Options:

• ZW195 charge available for R-410A systems
• Adjustable or non-adjustable superheat
• SAE or ODF connections standard - Chatleff or Aeroquip are available
• External or internal equalizer
• Internal check valve allows reverse flow for heat pump applications, eliminating the need for external piping and external check valve
• Bleed type pressure equalization to accommodate PSC type compressors
• Pressure limiting charges (MOP) available

Specifications:

• Maximum working pressure: 700 psig
• UL/CUL file number: SA 5312
