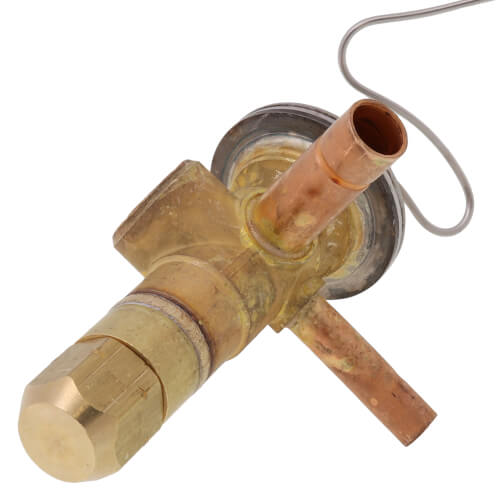

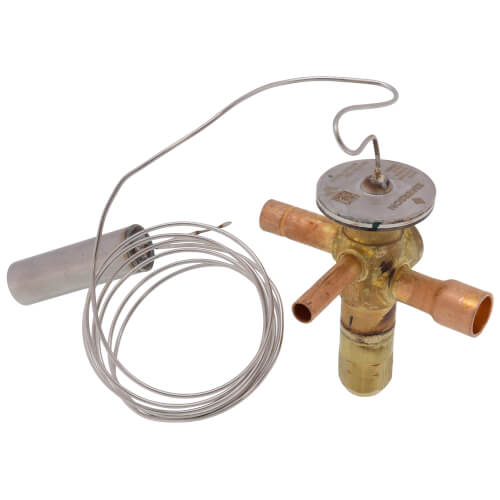

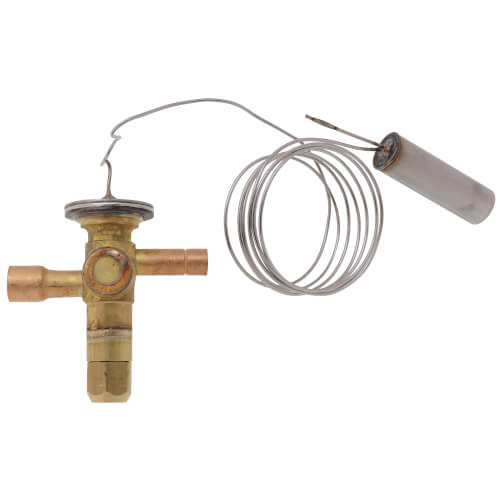

3/8" x 1/2" ODF (Sweat), NXT Series, 5' Capillary Tube, R410A Capacity Thermal Expansion Valve (5 Ton)

The Emerson NXT Series is a balanced ported valve designed for high efficiency R-410A air conditioning and heat pump applications. NXT Series valves operate over a wide range of conditions and applications, while offering excellent performance, superior reliability, and unparalleled valve life.

Features:

• Precision superheat control optimized for R-410 A systems
• Enhanced power element design offers extended valve life
• Stainless steel power element eliminates corrosion and prevents valve failure
• Laser etched identification markings for permanent legibility
• Hermetic, leak-free construction of all joints
• Compact size allows installation in limited spaces
• Bi-directional capability allows one valve to control the superheat in both cooling and heating modes for close-coupled or packaged heat pump applications
• Balanced port construction compensates for changes in operating pressures due to varying ambients, gas defrost, heat reclaim, or widely varying evaporator loads
• External equalizer is standard
• Screens on ODF inlet connections

Specifications:

• Refrigerant Code: Z (R-410A)
• Charge Code: AA (Wide Range)
• Capacity (Nominal): 5 Tons
• Inlet Connection Size: 3/8” ODF
• Outlet Connection Size: 1/2” ODF
• Adjustable Superheat: Yes
• Equalizer: External (1/4” ODF)
• Length: 5 Ft. Capillary
• Bleed: No
• Check Valve: Yes
• Body Design: A (Adjustable Superheat, with Check, Straight Thru)
• Maximum Working Pressure: 700 psig
• R-410A Operating Range: -20°F to +50°F
• Approvals: UR/CUR File Number SA5312
