FADE Series Low Silhouette Axial Fans

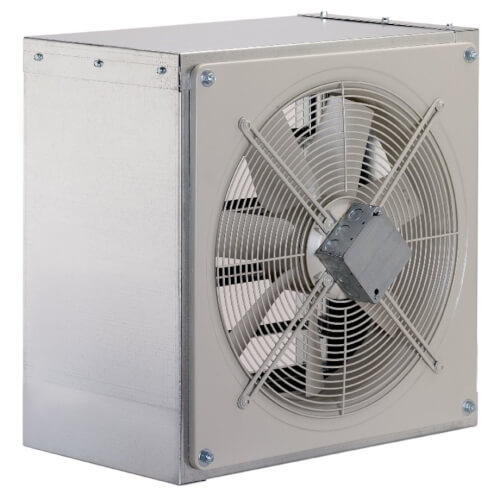

FADE Series Axial Fan, 20" Impeller, 4 Pole (Fully Assembled)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,289.37 each
Out of Stock
Get it Thu, Oct 19 - Mon, Oct 30
MANUALS (1)
Lift Gate
–
This product weighs 88 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1450 RPM
4949 CFM
8.39
3 Year Warranty
Description
–
Fantech's FADE Series axial fans are designed to effectively and quietly handle major ventilation challenges in locations such as large warehouses without taking up a lot of valuable space. The WHD FADE Series models come fully assembled with housing and damper.
All FADE Series fans combine aerodynamically designed propeller blades and rotor motor into one expertly integrated unit. Fans feature heavy gauge galvanized steel, baked powdercoat finish. Propeller options are formed steel blades featuring an "S" blade design or die-cast aluminum with an "A" blade design.
Features:
All FADE Series fans combine aerodynamically designed propeller blades and rotor motor into one expertly integrated unit. Fans feature heavy gauge galvanized steel, baked powdercoat finish. Propeller options are formed steel blades featuring an "S" blade design or die-cast aluminum with an "A" blade design.
Features:
- Permanently lubricated sealed ball bearings
- 100% speed controllable for highly efficient and economical airflow
- Suitable for airstream temperatures up to 100° F
- Integral blades and external rotor for precision balancing
- Formed galvanized steel wall panel with venturi features baked powdercoat finish
- Shallow profile with no protruding motor
- Terminal box with prewired electrical strip
- Three-year warranty
Specs
–
| Impeller: | 20" |
|---|---|
| Poles: | 4 |
| Blade Type: | A |
| Blade Material: | Die-Cast Aluminum |
| Voltage: | 115V |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 1450 |
| Air Flow Capacity (CFM): | 4949 |
| Max. Watts: | 916 |
| Max. Amps: | 8.39 |
| Housing Material: | Galvanized Steel |
| Warranty: | 3 Year |
