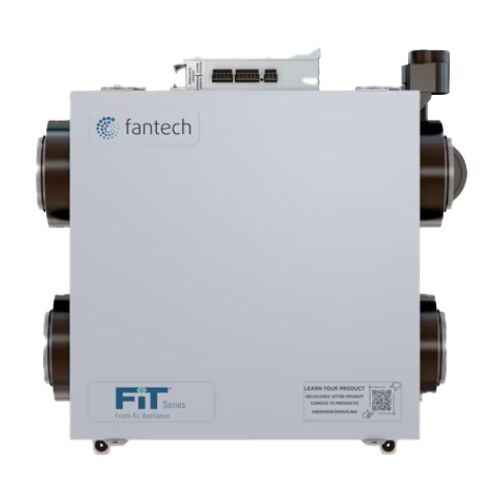

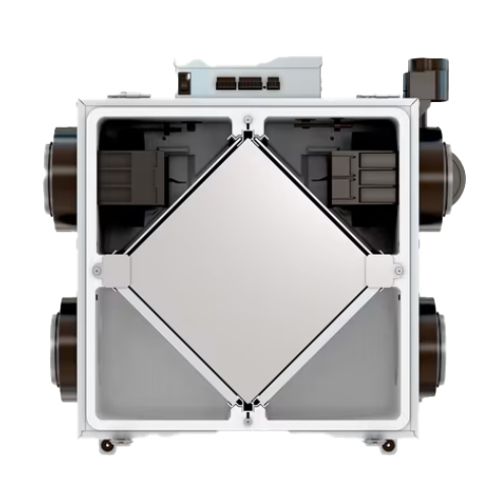

FIT 80E-D-M-HC Ceiling-Mounted Energy Recovery Ventilator, w/Shut-off Damper, Mirrored, Hard-Connected (78 CFM), 479407

The FIT 80E-D-M-HC features the warm supply and return air on the lefthand side, giving the designer options for mirrored floor plan applications. This slim, hard-connect, ERV solves code discrepancies and offers unique features tailored for multi-family applications. The door swings or slides open, creating flexibility for building personnel to perform quick and easy maintenance. The external electrical box simplifies commissioning for contractors. With balanced ventilation performance and compact dimensions (20 5/8 in. x 21 7/8 in. x 9 1/4 in.), this ERV fits seamlessly into tight spaces.

Features:

• Hard-connect system, no power cord provided
• Warm supply and return air on the left-hand side
• Compact design
• No drain required
• Mechanical shutoff damper
• Easy to install on ceiling or wall with mounting bracket included
• Energy recovery core
• Electrostatic filters (washable)
• Removable screw terminal for easy connection with external access
• Multiple speed operation
• Lightweight

Specifications:

• Duct size : 4 in. (100 mm.) round
• Voltage/Phase: 120/1
• Rated power: 58 W
• Running amperage: 0.6 A
• CSA rated amperage: 1.1 A
• Average airflow: 78 CFM (37 L/s) @ 0.4 in. wg. (100Pa)
• Weight: 29 lbs (13 kg) including core
