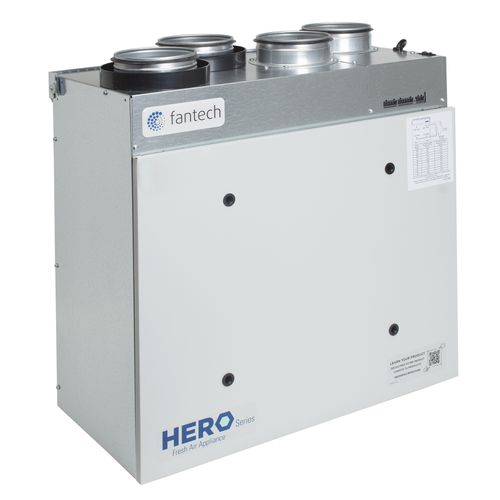

HERO 120E Top Duct Electronically Communicated ERV, 112 CFM

The HERO 120E-EC is a high-performance energy recovery ventilator (ERV) designed for single-family and multi-family residential applications, including condominiums and apartments. Its counterflow enthalpy core achieves over 85% sensible recovery efficiency (SRE), transferring both heat and moisture. The top-port configuration supports stringent design requirements, while the drainless design simplifies installation and maintenance. An integrated internal damper enables recirculation for efficient defrosting. EC motors use intelligent technology with integral electronic controls to ensure energy savings no matter what the airflow demands. Reduced energy usage results in lower operating costs. The motors develop less heat so significantly less maintenance is needed and the lifetime of the motor is increased.

Features:

• Lightweight: 45.9 lbs (20.8 kg) including core
• Electronically commutated motors (ECM)

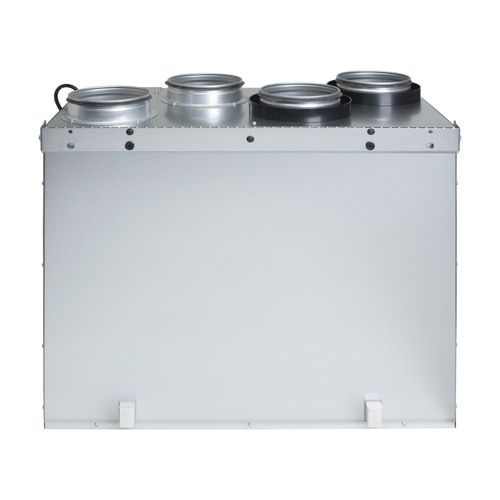

• Top-port, drainless design
• Can be wall-mounted (mounting bracket) or ceiling mounted (hung with chains)

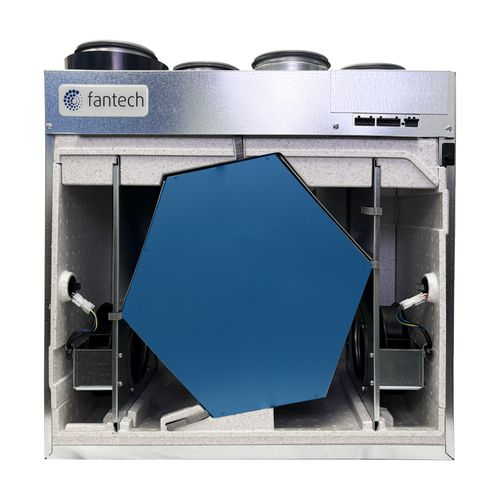

• Counterflow energy recovery core
• Internal recirculation defrost
• Electrostatic filters (washable)
• Removable screw terminal for easy connection with external access
• Multiple speed operation
• Recommended Control: ECO-Feel AUTO IAQ - Automatic IAQ Control
