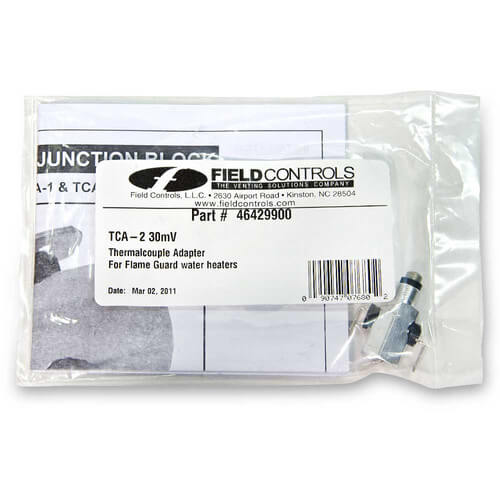

Thermocouple Adapter for Flame Guard
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (2)
Product Highlights
Description
Specs
| Thread Type: | Left Hand |
|---|
Questions?
Product Reviews
Solves the problem
Not what I thought
Product Q&A
2 QuestionsQ: will this left threaded adapter allow me to use a right threaded thermocouple
Asked by hicky 12 years ago
Add your answer
No it won't Sent from my iPhone
No, the adapter has left hand male and female threads. It is a fail-safe device (switch) designed for water heaters equipped with a damper that closes when the burner is off. I ended up getting a BFG Manifold/adapter kit which included Manifold door assembly, one Ferrule nut, one thermocouple adapter, two leads with push-on connectors with a label and installation manual. I believe I purchased this from SupplyHouse.com or similar supply house.
Q: does the thermocouple adapter for left hand threads require connections to the electrical posts on the adapter. My heater is not equipped for this. I assume it is for some sort of fail safe purpose. Can you speak to this. I replaced the thermostat on my heater several years ago and it was not not one for my unit although it worked fine until recently when the pilot occasionally goes out. Can't get a left hand thermocouple. Please advise.
Asked by john 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis unit is not an adapter to change a left hand thread to a right hand thread. It is a replacement part for a flame guard.
You can use this adapter to covert lh to rh thread thermocouples. The spade connectors are used for a flame roll out safety device. If your heater does not have this feature, build a jumper with two female spade connectors to complete the circuit at the adapter.
The part you have is an adapter for a gas control valve on a wall furnace. If you can't find a replacement thermocouple you can either replace your w/h control valve or take a right hand thermocouple and tighten it until it remakes the threads. If you try this just make sure you hold the thermocouple end square. You can use a pair of channel locks and push while turning it , the brass threads are soft enough that they will re-thread. It make take a couple tries, but it works and is the cheapest way to go, I have done it several times when parts weren't available.
