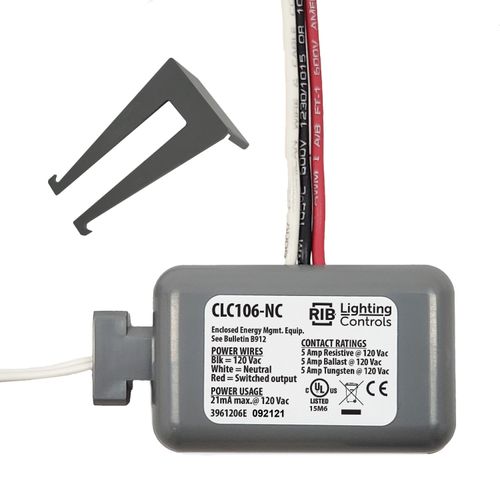

Closet Light Controller Relay, 5 Amp, SPST-NC, 120VAC, Separated Class 2 Magnetic Door Switch Input, NEMA 1 Housing
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$43.50 each
In Stock
Get 4 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
MANUALS (2)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
120v
5 Amps
Description
–
Closet Light Controller Relay, 5 Amp SPST-N/O, 120 Vac Power, Separated Class 2 Magnetic Door Switch Input, NEMA 1 Housing.
Specifications:
Specifications:
- # Relays & Contact Type: One (1) SPST-N/O Continuous Duty Coil
- Expected Relay Life: 10 million cycles minimum mechanical
- Operating Temperature:-30 to 140 F
- Dimensions: 1.50"H x 2.90"W x 1.05"D with Retaining Clip for 1/2" Knockout
- Origin: Made of US and non-US parts
- Wires: 16", 600 V Rated (120 Vac Connections) 6 Leads on Magnetic Door Switch
- Approvals: UL Listed, UL916, C-UL, CE, RoHS
- Housing Rating: UL Accepted for Use in Plenum, NEMA 1
- Contact Ratings: 5 Amp Resistive @ 120 Vac, 5 Amp Electronic Ballast @ 120 Vac, 5 Amp Magnetic Ballast @ 120 Vac, 5 Amp Tungsten @ 120 Vac
- Power Usage: 21 mA @ 120 Vac Max.
Specs
–
| Voltage: | 120v |
|---|---|
| Amperage: | 5 |
| Switch: | SPST |
| Enclosure Type: | NEMA-1 |
