TM_Acquisition-S

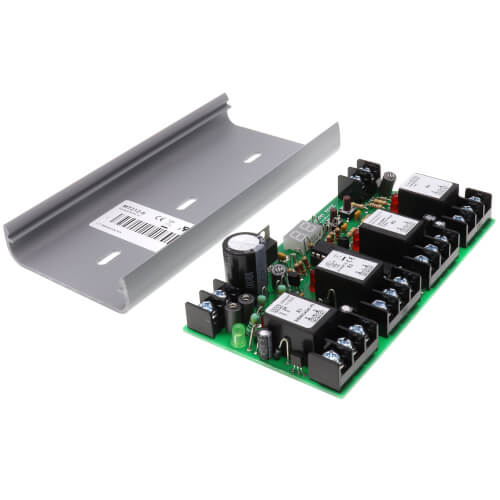

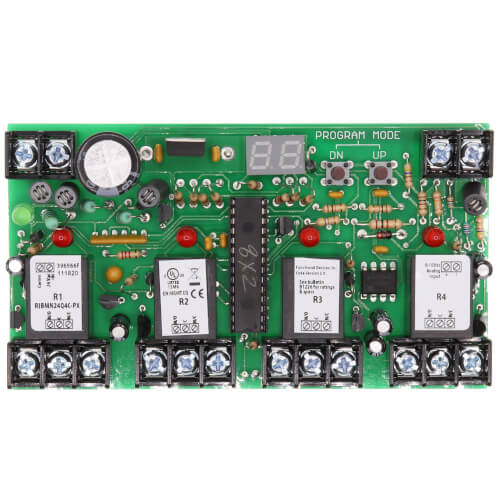

2.75" Track Mount 4 Output Field Adjustable Staging Threshold Relay Module with 24 VAC/DC Power Input and 0-10 Vdc Control Input
Hover image to zoom
Home
Electrical Supplies
Electrical Controls
Fan Relays

2.75" Track Mount 4 Output Field Adjustable Staging Threshold Relay Module with 24 VAC/DC Power Input and 0-10 Vdc Control Input

Brand:
Functional Devices
SKU:
RIBMN24Q4C-PX
Rating:
(0)
Q&A:
(0)
2.75" Track Mount 4 Output Field Adjustable Staging Threshold Relay Module with 24 VAC/DC Power Input and 0-10 Vdc Control Input
Hover image to zoom
$94.12 each
In Stock
In Stock
Get 2 Thu, Oct 12
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Voltage icon
24v

Description

–
2.75" Track Mount Relay 15 Amp SPST & Override, Polarized w/ 24 VAC/DC Coil

Specifications
    # Relays & Contact Type: Four (4) SPDT Continuous Duty Coil Expected Relay Life: 10 million cycles minimum mechanical Operating Temperature: -30 to 140° F Humidity Range: 5 to 95% (noncondensing) Power Status: Green LED On = Power On Relay Status: Red LED On = Relay Activated Heartbeat Status: Right-most decimal point Dimensions: 4.950" x 2.750" x 1.750" Track Mount: MT212-6 Mounting Track Provided Approvals: UL Listed, UL916, C-UL, CE, RoHS Gold Flash: No Override Switch: No

Specs

–
Voltage:

24v
