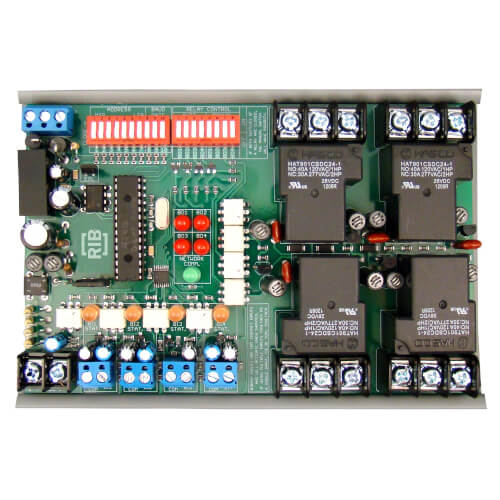

BACnet Network Relay 20 Amp SPDT w/ 24 VAC/DC Power Input
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$283.76 each
Backorder
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
24V
Description
–
BACnet Network Relay 20 Amp SPDT w/ 24 VAC/DC Power Input
Specifications
Specifications
- Relays & Contact Type: Four (4) SPDT Continuous Duty Coil
- Expected Relay Life: 10 million cycles minimum mechanical
- Operating Temperature: -30 to 140° F
- Humidity Range: 5 to 95% (noncondensing)
- Operate Time: 18ms
- Network Communication: Green LED
- Relay Status: Red LED On = Activated
- Binary Input Status: Pink LED On = Activated
- Dimensions: 6.00" L x 4.00" W x 1.34" H
- Track Mount: MT4-6 Mounting Track Provided
- Approvals: UL Listed, UL916, C-UL, CE, RoHS, BTL Certified
- Gold Flash: No
- Relay Override Switch: DIP Switch Control
Specs
–
| Voltage: | 24V |
|---|---|
| Resistive: | 20 A |
| Type: | SPDT |
