Description

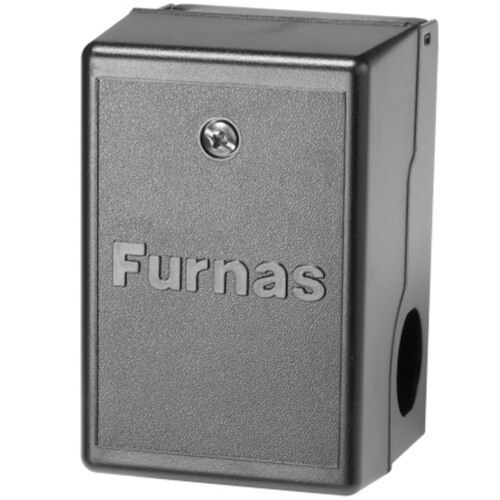

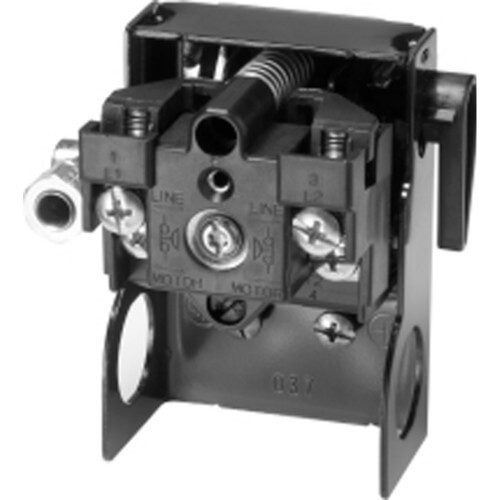

Designed to be the most adaptable switch on the market, the 69J offers the user the flexibility to build the pressure switch around the compressor, not the other way around. The unloader can be mounted on either side, and can be rotated to any of eight different positions, allowing for quicker assembly and shorter tubing. A Bottom Entry frame is also available with built in clamping strain relief for even quicker assembly. With thousands of variations right off the production line, the 69J provides maximum flexibility at minimum cost. With UL, CSA, CE, and CCC approvals, the 69J is designed to be sold anywhere in the world.

Features:
  • 3 and 5 HP 200 PSI maximum
  • Improved unloader valve design
  • Several terminal options
  • Optional bottom cable entry
  • Silver cad-oxide brazed contacts
  • Various pipe locations
  • Choice of auto-Off lever locations
  • UL listed and CSA Certified
  • CE and CCC approved
  • 1/4" female NPT connection standard
  • 4 x 1/4" female NPT available
Hide Description
Manuals (1)
Specs
Cut-In PSI:

100

Cut-Out PSI:

175

Connection Type:

FNPT

Horse Power:

3

5

Differential:

30 to 40 psi

Connection Size:

1/4"

×
