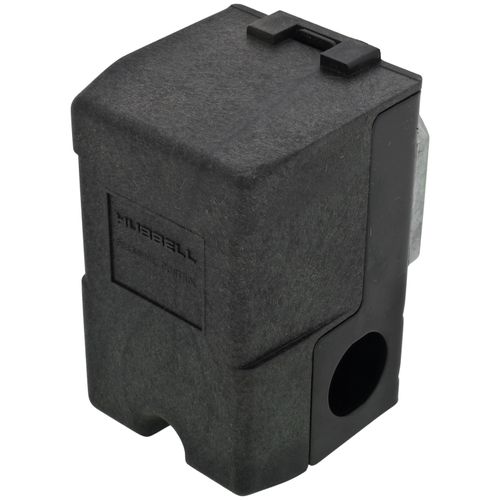

Pressure Switch (Air/Water), 30-50#
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
MANUALS (1)
Product Highlights
Description
Switches combine the functions of a standard pressure switch with protection against low pressure. They prevent the pump from starting whenever the systems falls considerably below cut-in pressure. Upon restoration of the water supply, a manual reset lever is depressed until a build up of system pressure permits automatic operation.
Features:
- Corrosion resistant cover
- No wire looping
- Straight through wiring

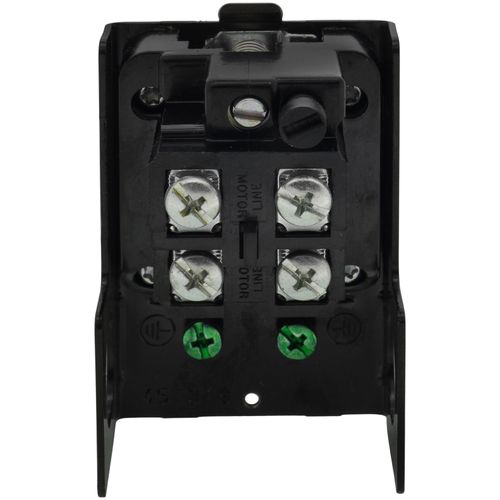

- Visible contacts - 2 pole, double throw
- No-drift pressure settings
- Captive cover screw
- Easy to adjust
- 2 ratings - 3 HP & 5 HP
- UL listed file #14861, CSA certified #LR36854
Specs
| Cut-Out PSI: | 65 |
|---|---|
| Cut-In PSI: | 5 |

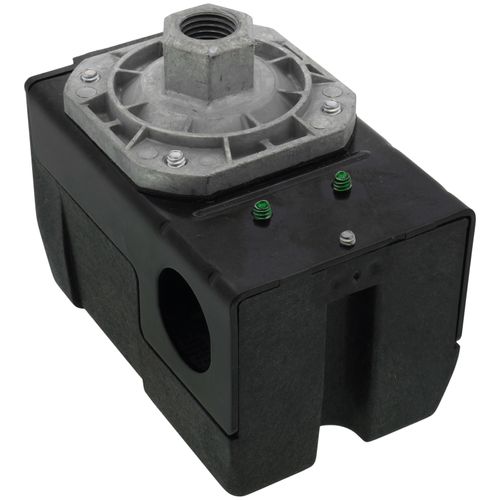

| Connection Type: | FNPT |
| Horse Power: | 3 5 |
Contact
Happy Independence Day!
Product Reviews
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I would buy this product again but not from SupplyHouse.
Excellent quality switch
Right item received quickly
good
Product Q&A
2 QuestionsQ: what do I need to connect this to my pump (pressure wise not electrical)
Asked by dilly 11 years ago
Add your answer
Hi Dilly, It is quite easy to plumb a pressure switch to your water well pump system. I think the best way is to connect it high up on the pressure tank where it will always be above the fluctuating water line. This way the switch will not be in water and not subject to freezing. Hopefully you can find (or make) a threaded pipe connection in such a location on your tank and simply plumb the pressure switch to the tank. I then would use a flexible electrical conduit to carry the wires to the control panel. Alternatively you can plumb the switch to the piping located on the pressure tank side of your well pump check valve. Regardless of where you connect the pressure switch it should be located to monitor the system pressure present in your pressure tank. Be careful to avoid placing the switch in a location that could isolate the switch from the pressure tank by any valve. If in danger of freezing, insulate the switch and connecting plumbing. I hope that this helps. Alan.
Q: Is this a direct replacement for a 69WA4L ? Also who sells this switch near Lake worth, Texas?
Asked by Bill 14 years ago
Add your answer
Verified Reply- PexSupply StaffWe still sell part 69WA4L. See here: https://www.pexsupply.com/Furnas-Controls-69WA4L-Pressure-Switch-Air-Water
