Description

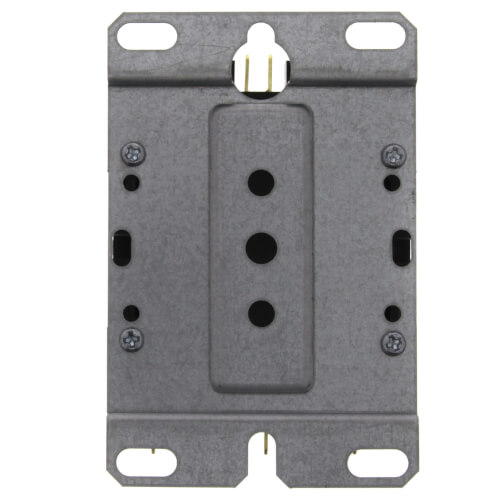

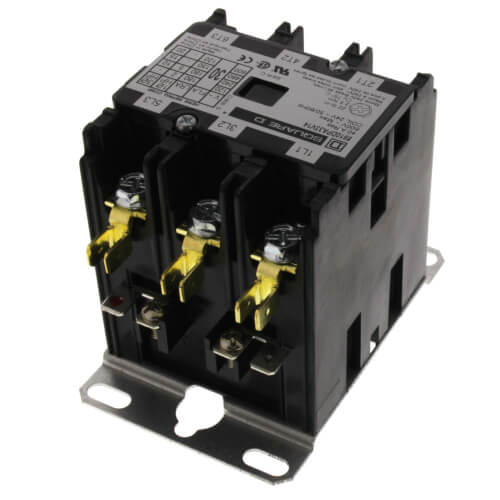

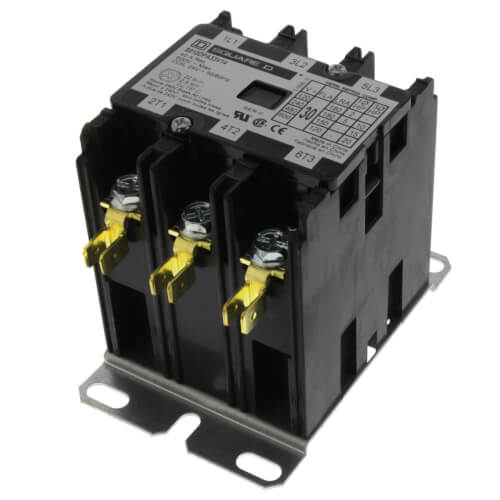

Square D Definite Purpose Contactor (30A, 3 Phase, 3 Pole)
  • Enclosure Type: Open
  • Approvals: UL Listed - CSA Certified - CE Marked
  • Horsepower Rating (1-Phase): 2HP@115VAC - 5HP@230VAC
  • Maximum Voltage Rating: 600VAC
  • Mounting Type: Panel
  • Number of Poles: 3-Pole
  • Locked Rotor Amperes 180A@230VAC - 150A@460VAC - 120A@575VAC
  • Horsepower Rating (3-Phase): 10HP@230VAC - 15HP@460/575VAC
  • Operating Voltage: 24VAC@50/60Hz
  • Phase: 3-Phase
  • Action: Non-Reversing
  • Type: DPA
Read more
Manuals (1)
Specs
Phase:
3
Voltage:
24v
Amperage:
30
Poles:
3
Product Type:
Magnetic Contactor
×
