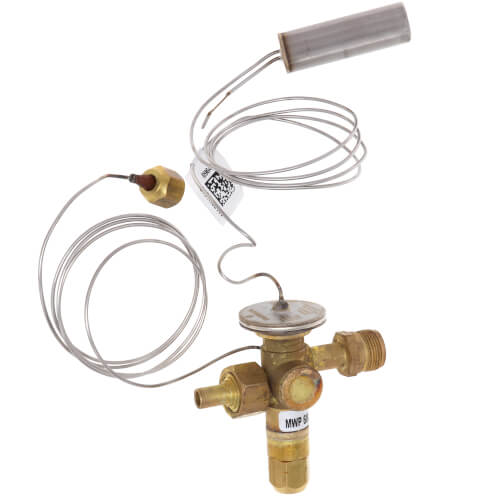

TXV Valve Kit, TX5N4

Part fit perfect and delivered as promised

The kit is Called for by Goodman for COILS such as their 4-5 ton CHPF4860D6. It comes with two teflon seals, stainless steel mounting strap for the bulb. Full instructions for horizontal mounting, one strip of sticky foam insulation which is a bit thin, and the 3/4" and 7/8" ACR OD vapor line shrader port which is about 4" in lenght. The TXV is a Emerson NAE5ZAACHA pn=0151R00177 adjustable. For my application of 5Ton R410a, adjusting the TXV was not required and in most cases it would not need adjusting and would be the last thing parameter to look at. Torque settings are included in the instructions. The included TXV insulation boot was welcome although its difficult to put on because of the bulb tubbing which needed a bit of customization. The inlet tail piece and inlet nut is not included ; those items are purchased separate but is often included with the COIL even if it came factory with a Flowrator or piston setup. Installation and setup is straight forward, i highly recommended. Supplyhouse.com had the best price and faster delivery for this item
