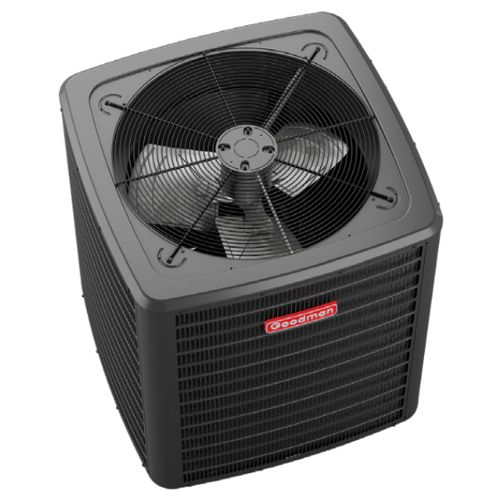

3 Ton 14.3 SEER2 Energy-Efficient Multi-Family Split System R-32 Refrigerant Heat Pump
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 223 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
3
36000
R-32
14.3
36000 BTUs
Description
–
In compliance with the AIM Act of 2020, this product is designed for use with A2L appliances only. This product is NOT to be used in the installation or repair of an R410A appliances.
To receive the 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Quebec. The duration of warranty coverage in Texas and Florida differs in some cases.
Note: As of January 1, 2023 the US Department of Energy released a new SEER2 standard that provides manufacturers guidance in measuring the efficiency of their HVAC units.
The US Department of Energy divided the country into 3 regions (North, Southeast, and Southwest) and established energy efficient standards for each.
Please check the SEER2 site to ensure efficiency compliance for your region.
Product Features
- High-efficiency compressor
- SmartShift technology to ensure quiet reliable defrost
- Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
- Single-speed PSC condenser fan motor
- Factory-installed bi-flow liquid-line filter drier
- Factory-installed suction-line accumulator
- Factory-installed compressor crankcase heater
- Factory-installed high-capacity muffler
- High- and low-pressure switches
- Service valves with sweat connections and easy access to gauge ports
- Fully charged for 15' of tubing length
- Contactor with lug connection
- Ground lug connection
- Capacitors with extended life
- AHRI Certified; ETL Listed
Cabinet Features
- Removable grille-style top design compliant with UL 60335-2-40
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- Top and side maintenance access
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Specs
–
| Ton: | 3 |
|---|---|
| BTU: | 36000 |
| Series: | R-32 |
| Refrigerant Type: | R-32 |
| SEER2: | 14.3 |
| Cooling Capacity (BTU): | 36000 |
Contact
13 Replacement Parts
Reversing Valve Coil, B1225022S
SKU: B1225022S
Goodman-AmanaLimit Switch, 0130M00106
SKU: 0130M00106
Goodman-AmanaCompressor Grommet, B1339533
SKU: B1339533
Goodman-AmanaLow Pressure Switch, 0130M00088SP
SKU: 0130M00088SP
Goodman-AmanaReversing Valve Coil Leads, 0130M00410
SKU: 0130M00410
Goodman-Amana230V 40W Belt Crankcase Heater, 0163R00002S
SKU: 0163R00002S
Goodman-AmanaDefrost Control Board, PCBDM133S
SKU: PCBDM133S
Goodman-Amana5/16" Hex Acorn Nut (Black), 0163M00006P
SKU: 0163M00006P
Goodman-AmanaAccumulator, B1226207
SKU: B1226207
Goodman-AmanaBi-Flow Filter Dryer, 0162R00056SP
SKU: 0162R00056SP
Goodman-AmanaMuffler 1/2 X 1/2, 0162R00007
SKU: 0162R00007
Goodman-Amana440V Dual Round Capacitor (40/5 MFD), CAB050400440CT
SKU: CAB050400440CT
