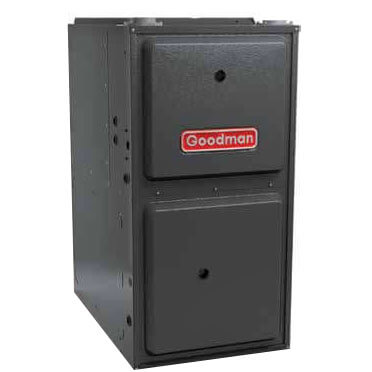

Main product image of 60,000 BTU 96% Efficiency, 2 Stage Burner, Variable Speed Blower, Upflow/Horizontal Gas Furnace

Hover image to zoom

60,000 BTU 96% Efficiency, 2 Stage Burner, Variable Speed Blower, Upflow/Horizontal Gas Furnace

Name: 60,000 BTU 96% Efficiency, 2 Stage Burner, Variable Speed Blower, Upflow/Horizontal Gas Furnace
Brand: Goodman
SKU: GMVC960603BN
Price: 2214 USD
Availability: OutOfStock

Brand:

Goodman

SKU:

GMVC960603BN

Rating:

(0)

Q&A:

(0)

60,000 BTU 96% Efficiency, 2 Stage Burner, Variable Speed Blower, Upflow/Horizontal Gas Furnace

Hover image to zoom

$2,214.00 each

Backorder

Get it Thu, Jul 23 - Mon, Aug 24

MANUALS (7)

This item replaces: GMVC950704CX

Schematic Feature!

Replacement Parts

Lift Gate

–

This product weighs 117 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.

Free Shipping This item ships free

Easy Returns No restocking fee for 90 days

Product Highlights

–

10 Year (Parts), 20 Year (Heat Exchanger) Warranty

1/2 @ 1050 RPM HP

60000 BTUs

Horizontal, Upflow

60000 BTUs

57600 Max BTUs

Description

–

This unit is a Non-A2L Furnace and requires an A2L refrigerant leakage detection system when installed with a R32 Goodman coil. The necessary kit must be purchased and can be found at 0230K00044.

Standard Features

ComfortNet Communicating System compatible
Heavy-duty aluminized-steel tubular heat exchanger
Stainless-steel secondary heat exchanger
Two-stage gas valve provides quiet, economical heating
Durable Silicon Nitride igniter
Quiet two-speed induced draft blower
Utilizes ComfortNet communicating, two-stage or single-stage thermostats
Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
Multiple continuous fan speed options offer quiet air circulation
Auto-Comfort and enhanced dehumidification modes available
All models comply with California
Low NOx emissions standard

Cabinet Features

Designed for multi-position installation - upflow, horizontal left or right
Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
Easy to install top venting with optional side venting
Convenient left or right connection for gas and electrical service
Cabinet air leakage (Q Leak) less than or equal to 2%
Heavy-gauge steel cabinet with durable baked-enamel finish
Fully insulated heat exchanger and blower section
Airtight solid bottom or side-return with easy-cut tabs for effortless removal in bottom air-inlet applications

Specs

–

BTU Input:	60000
Application:	HVAC
Airflow:	Horizontal Upflow
Type:	Two Stage Variable Speed
Efficiency:	96%
Heating Capacity (BTU):	60000
Maximum BTU Input:	60000
BTU Output:	57600
Max Airflow (CFM):	1600
Horse Power:	1/2 @ 1050 RPM
Speeds:	Variable
Vent Diameter:	3" 2"
Burners:	3
Temperature Rise:	20°F-50°F
Warranty:	10 Year (Parts) 20 Year (Heat Exchanger)
Country of Origin:	USA
Features:	ComfortNet Communicating System
Width (Inches):	17-1/2"
Depth (Inches):	28-3/4"
Height (Inches):	34.5"
Weight (lbs):	117 lbs
