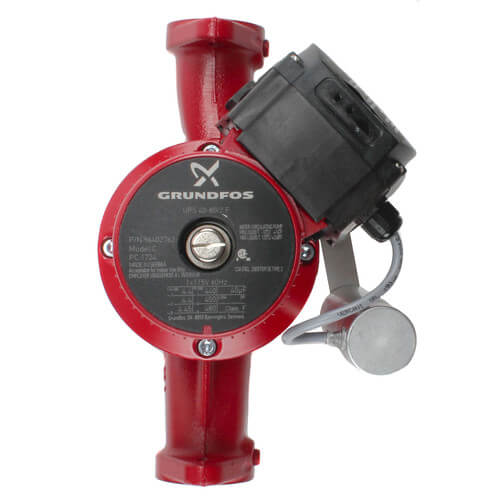

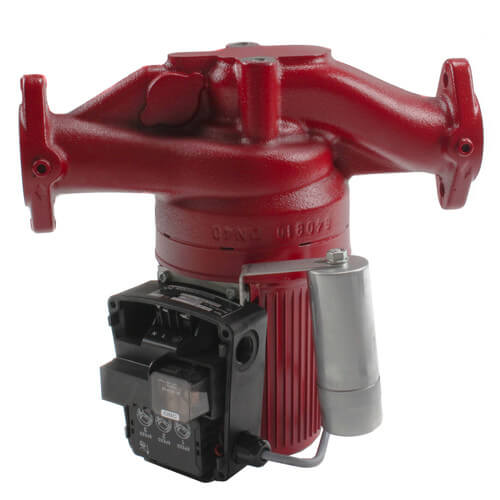

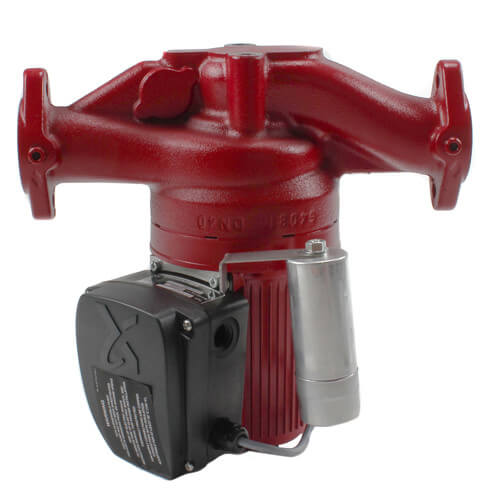

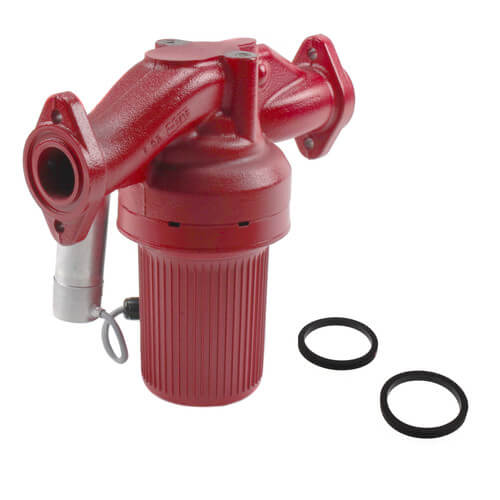

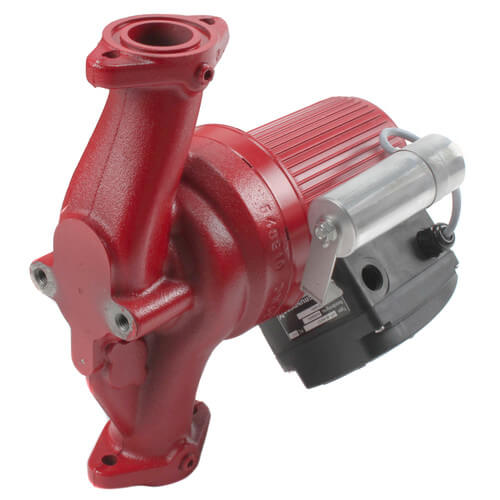

UPS40-80/2 VersaFlo Cast Iron Circulator Pump 115V, 3/4 HP
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,008.70 each
In Stock
Get 9 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
This item replaces: 96402748
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
3/4 HP
Flanged x Flanged Connection
105 MAX GPM
145 MAX PSI
Cast Iron
Description
–
Grundfos VersaFlo UPS circulators are designed for circulation of liquids in heating and air conditioning systems. These pumps are typically applied in large residential and commercial applications. VersaFlo UPS circulators are also available in bronze pump housings which are suitable for hot water recirculation as well as other system applications.
Note: This circulator requires:
539605: 1-1/2" Cast Iron Flange Set (For UP43 Flange Mounted Pumps Only) Features
Note: This circulator requires:
539605: 1-1/2" Cast Iron Flange Set (For UP43 Flange Mounted Pumps Only) Features
- 3 Speed Motor Technology - Reduces Noise & Power Consumption
- Exclusive Wet Rotor Technology Up To 3 HP
- Built-In Motor Protection For Long Life
- Whisper Quiet
- 30 Month Warranty
- Maintenance Free
- No Mechanical Seal
- Water Cooled Motor
- Leak Proof
Specs
–
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Type: | 3-Speed Pump |
| Material: | Cast Iron |
| Voltage: | 115V |
| Hertz: | 60 |
| Horse Power: | 3/4 |
| Phase: | 1 |
| Speeds: | 3 |
| Max Head (Ft): | 30 |
| Head Range (ft.): | 0-30 |
| Poles: | 2 |
| Max Flow (GPM): | 105 |
| Flow Range (GPM): | 13-105 |
| Mount: | In-Line |
| Connection Size: | 1-1/2" |
| Connection Type: | Flanged x Flanged |
| RPM: | 3450 |
| Max Pressure (PSI): | 145 |
