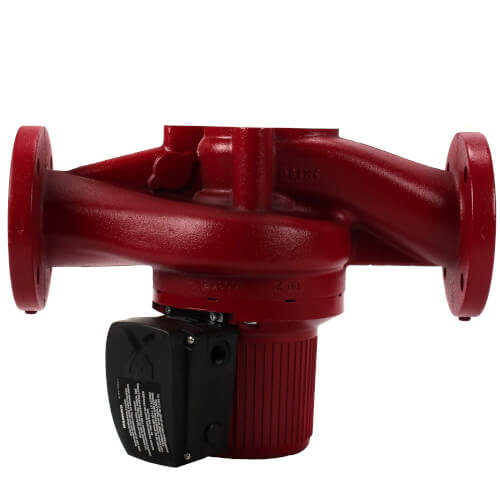

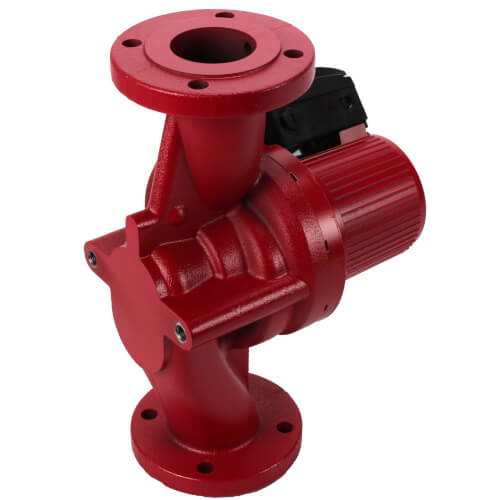

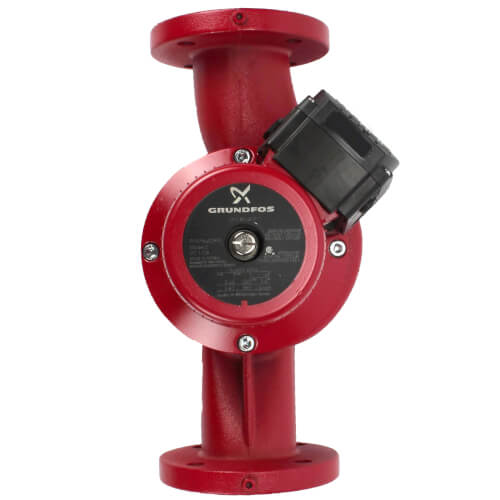

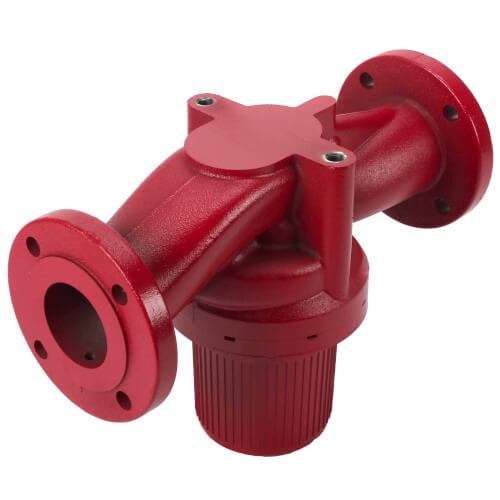

Main product image of UPS80-40/4F 2-Speed Cast Iron Circulator Pump 460V, 1/2 HP

Hover image to zoom

UPS80-40/4F 2-Speed Cast Iron Circulator Pump 460V, 1/2 HP

Name: UPS80-40/4F 2-Speed Cast Iron Circulator Pump 460V, 1/2 HP
Brand: Grundfos
SKU: 96402895
Price: 1659 USD
Availability: OutOfStock

Brand:

Grundfos

SKU:

96402895

Rating:

(0)

Q&A:

(0)

UPS80-40/4F 2-Speed Cast Iron Circulator Pump 460V, 1/2 HP

Hover image to zoom

96402895 has been discontinued

Discontinued January 2, 2026

This product was discontinued by the manufacturer.

MANUALS (3)

Replacement Parts

Product Highlights

–

460v

1/2 HP

Flanged x Flanged Connection

82.8 MAX GPM

145 MAX PSI

Cast Iron

Description

–

Grundfos VersaFlo UPS circulators are designed for circulation of liquids in heating and air conditioning systems. These pumps are typically applied in large residential and commercial applications. VersaFlo UPS circulators are also available in bronze pump housings which are suitable for hot water recirculation as well as other system applications.

Features

Exclusive Wet Rotor Technology Up To 3 HP
Built-In Motor Protection For Long Life
Whisper Quiet
30 Month Warranty
Maintenance Free
- No Mechanical Seal
- Water Cooled Motor
- Leak Proof
***Image may not represent actual item.

Specs

–

Frequency:	60 Hz 60 Hz
Material:	Cast Iron
Type:	2-Speed Pump
Voltage:	460v
Horse Power:	1/2
Speeds:	2
Max Head (Ft):	13.1
Max Flow (GPM):	82.8
Max Pressure (PSI):	145
Phase:	3
Mount:	In-Line
Connection Type:	Flanged x Flanged
