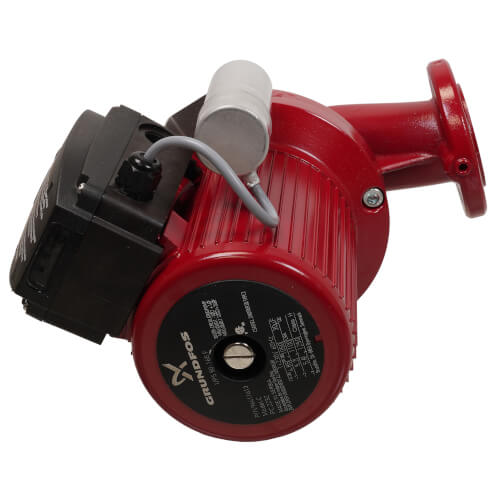

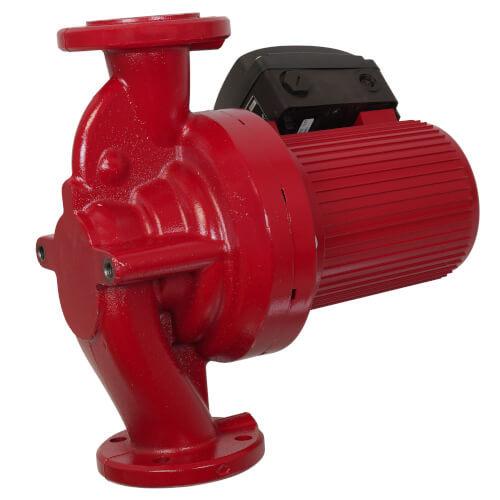

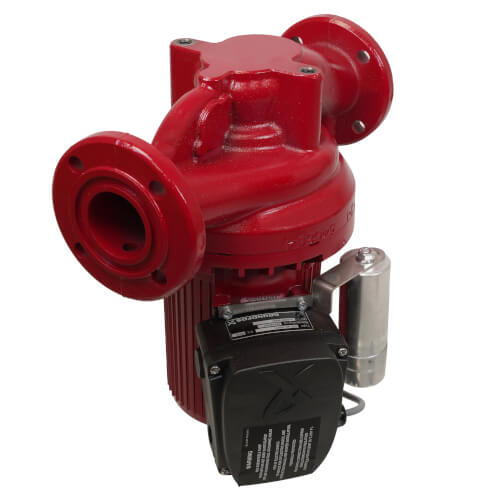

UPS50-160/2 VersaFlo Cast Iron Circulator Pump 230V, 1-1/2 HP
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$2,743.08 each
In Stock
Get 11 Thu, Jun 11
Order by today, receive Thursday
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V
1-1/2 HP
Flanged x Flanged Connection
170 MAX GPM
145 MAX PSI
Cast Iron
Description
–
Grundfos VersaFlo UPS circulators are designed for circulation of liquids in heating and air conditioning systems. These pumps are typically applied in large residential and commercial applications. VersaFlo UPS circulators are also available in bronze pump housings which are suitable for hot water recirculation as well as other system applications.
Note: This circulator requires:
96409354: 2" Cast Iron GF50 Pump Flange (Pair)
Features
Note: This circulator requires:
96409354: 2" Cast Iron GF50 Pump Flange (Pair)
Features
- 3 Speed Motor Technology - Reduces Noise & Power Consumption
- Exclusive Wet Rotor Technology Up To 3 HP
- Built-In Motor Protection For Long Life
- Whisper Quiet
- 30 Month Warranty
- Maintenance Free
- No Mechanical Seal
- Water Cooled Motor
- Leak Proof
Specs
–
| Frequency: | 60 Hz 60 Hz 60 Hz |
|---|---|
| Material: | Cast Iron |
| Type: | 3-Speed Pump |
| Voltage: | 230V |
| Hertz: | 60 |
| Horse Power: | 1-1/2 |
| Phase: | 1 |
| Speeds: | 3 |
| Max Head (Ft): | 46 |
| Head Range (ft.): | 1-46 |
| Max Flow (GPM): | 170 |
| Flow Range (GPM): | 20-170 |
| Connection Size: | 2" |
| Mount: | In-Line |
| Connection Type: | Flanged x Flanged |
| RPM: | 3450 |
| Max Pressure (PSI): | 145 |
