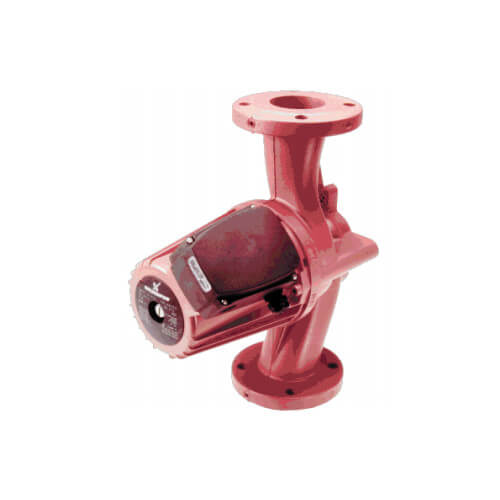

UPS75-69F 3-Speed Cast Iron Circulator Pump 230V, 1-1/2 HP
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
96654379 has been discontinued
Discontinued June 21, 2022
This product was discontinued by the manufacturer.
MANUALS (3)
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:
UPS50-160/2F 3-Speed Cast Iron Circulator Pump 230V, 1-1/2 HP
Product Highlights
–
230V
1-1/2 HP
Flanged x Flanged Connection
74.2 MAX GPM
145 MAX PSI
Cast Iron
Description
–
Grundfos VersaFlo UPS circulators are designed for circulation of liquids in heating and air conditioning systems. These pumps are typically applied in large residential and commercial applications. VersaFlo UPS circulators are also available in bronze pump housings which are suitable for hot water recirculation as well as other system applications.
Features
Features
- 3 Speed Motor Technology - Reduces Noise & Power Consumption
- Exclusive Wet Rotor Technology Up To 3 HP
- Built-In Motor Protection For Long Life
- Whisper Quiet
- 30 Month Warranty
- Maintenance Free
- No Mechanical Seal
- Water Cooled Motor
- Leak Proof
***Image may not represent actual item.
Specs
–
| Material: | Cast Iron |
|---|---|
| Type: | 3-Speed Pump |
| Voltage: | 230V |
| Horse Power: | 1-1/2 |
| Speeds: | 3 |
| Max Head (Ft): | 34.5 |
| Max Flow (GPM): | 74.2 |
| Max Pressure (PSI): | 145 |
| Frequency: | 60 Hz |
| Phase: | 3 |
| Mount: | In-Line |
| Connection Type: | Flanged x Flanged |
