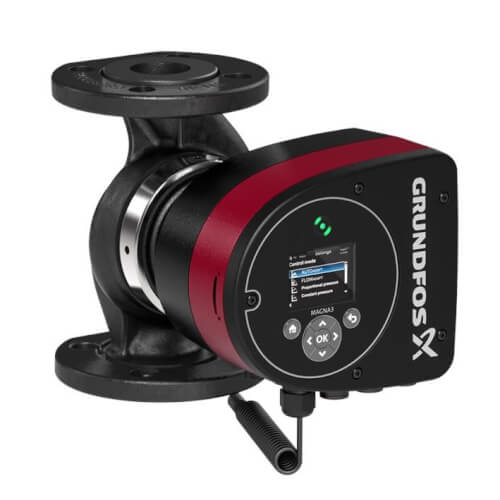

MAGNA3 50-150 F Cast Iron Circulator Pump, GF 53 Flange (3/4 HP, 115V)

MAGNA3 50-150 F Cast Iron Circulator Pump, GF 53 Flange (3/4 HP, 115V)

MAGNA3 – More than a pump With its unrivalled efficiency, all-encompassing range and built-in communication capabilities plus functionalities replacing system components, the MAGNA3 is ideal for engineers and specifiers looking to create high-performance systems for buildings. This pump in the Grundfos Master Class will fit both heating and cooling applications perfectly, making it the obvious choice for almost any building project – old or new.

The MAGNA3 is of the canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The innovative clamp with only one screw enables easy repositioning of the pump head. The MAGNA3 is a pump with no maintenance requirements and with extremely low Life Cycle Cost.

Motor and electronic controller The MAGNA3 incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled by an integrated frequency converter. A differential-pressure and temperature sensor is incorporated in the pump.

Product Details

• AUTOADAPT mode that automatically finds the optimal setting
• FLOWLIMIT reduces the need for pump throttling valves
• Proportional pressure control
• Constant pressure control
• Constant flow mode
• Intuitive color display
• Application Wizard for easy commissioning
• Wireless twin pump redundancy for double pump performance and reduced downtime in service situations
• Vast communication options, including analog and digital inputs, configurable relays, and fieldbus integration (requires additional CIM module)
