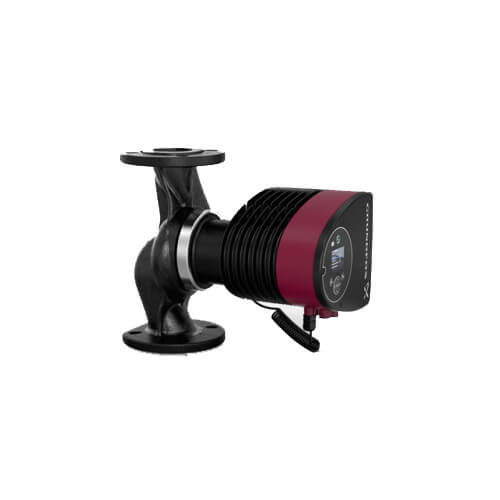

MAGNA3 40-180F Stainless Steel Flange Mount Circulator Pump 208-230V, 3/4 HP
Hover image to zoom

MAGNA3 40-180F Stainless Steel Flange Mount Circulator Pump 208-230V, 3/4 HP

Brand:
Grundfos
SKU:
98126838
Rating:
(0)
Q&A:
(0)
MAGNA3 40-180F Stainless Steel Flange Mount Circulator Pump 208-230V, 3/4 HP
Hover image to zoom
$5,602.14 each
Backorder
Backorder
Get it Tue, Apr 2 - Tue, Apr 30
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
208/230v
Horse Power icon
3/4 HP
Connection Type icon
Flanged x Flanged Connection
Max Flow (GPM) icon
48 MAX GPM
Max Pressure (PSI) icon
175 PSI
Material icon
Stainless Steel

Description

The Grundfos MAGNA3 circulator pumps are designed for circulating liquids in the following systems:
  • heating systems
  • air-conditioning and cooling systems
  • domestic hot-water systems.
  • ground source heat pump systems
  • solar-heating systems.
The MAGNA3 circulator pumps are designed for circulating liquids in heating systems with variable flows where you want to optimise the setting of the pump duty point, thus reducing energy costs. The pumps are also suitable for domestic hot-water systems. Observe local legislation regarding pump house material. Grundfos strongly recommend that you use stainless-steel pumps in domestic hot-water applications to avoid corrosion.

To ensure correct operation, it is important that the sizing range of the system falls within the duty range of the pump.

The pump is especially suitable for installation in existing systems where the differential pressure across the pump is too high in periods with reduced flow demand. The pump is also suitable for new systems where automatic adjustment of the head to the actual flow demand is required, without using expensive bypass valves or similar components.

Furthermore, the pump is suitable for systems with hot-water priority as an external signal can immediately force the pump to operate according to the maximum curve, for example in solar-heating systems.

Specs

Type:

Var. Speed Pump

Material:

Stainless Steel

Hertz:

60

Voltage:

208/230v

Horse Power:

3/4

Phase:

1

Max Head (Ft):

58

Head Range (ft.):

0-58

Max Flow (GPM):

48

Flow Range (GPM):

0-48

Frequency:

60 Hz

Connection Type:

Flanged x Flanged

Max Pressure (PSI):

175
