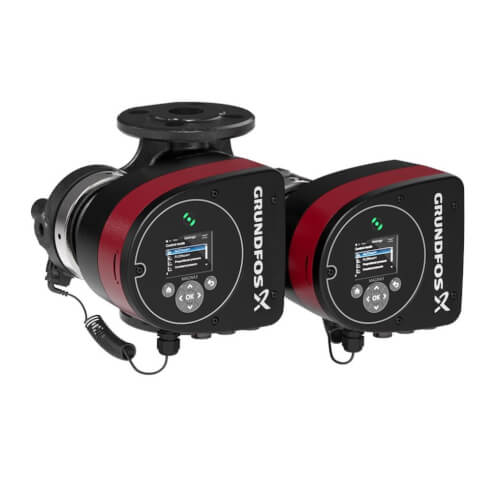

MAGNA3 D 80-100 GF Cast Iron Circulator Pump (1-1/2 HP, 230V)
Hover image to zoom

MAGNA3 D 80-100 GF Cast Iron Circulator Pump (1-1/2 HP, 230V)

Brand:
Grundfos
SKU:
98126864
Rating:
(0)
Q&A:
(0)
MAGNA3 D 80-100 GF Cast Iron Circulator Pump (1-1/2 HP, 230V)
Hover image to zoom
$9,033.82 each
Backorder
Backorder
Get it Mon, Mar 25 - Mon, Apr 1
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
230v
Horse Power icon
1-1/2 HP
Connection Type icon
Flanged x Flanged Connection
Max Pressure (PSI) icon
175 PSI
Material icon
Cast Iron

Description

MAGNA3 D 80-100 GF Cast Iron Circulator Pump (1-1/2 HP, 230V)

The Grundfos MAGNA3 is a circulator pump with permanent magnet motor that will fit both heating, cooling and domestic hot water circulation applications perfectly, making it the obvious choice for almost any building project – old or new.

With its unrivalled efficiency, all-encompassing range and built-in communication capabilities plus functionalities replacing system components, the MAGNA3 is ideal for building owners, engineers and specifiers looking to create high-performance systems for buildings.

The MAGNA3 is a canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.

The innovative clamp with only one screw enables easy repositioning of the pump head.

The MAGNA3 is a pump with no maintenance requirements and with extremely low Life Cycle Cost.

Features
  • AUTOADAPT mode that automatically finds the optimal setting
  • FLOWLIMIT reduces the need for pump throttling valves
  • Proportional pressure control
  • Constant pressure control
  • Constant flow mode
  • Intuitive color display
  • Application Wizard for easy commissioning
  • Wireless twin pump redundancy for double pump performance and reduced downtime in service situations
  • Vast communication options, including analog and digital inputs, configurable relays, and fieldbus integration (requires additional CIM module)

Specs

Type:

Var. Speed Pump

Material:

Cast Iron

Voltage:

230v

Connection Type:

Flanged x Flanged

Max Pressure (PSI):

175

Horse Power:

1-1/2

Frequency:

60 Hz

Phase:

1

Max Head (Ft):

32.8
