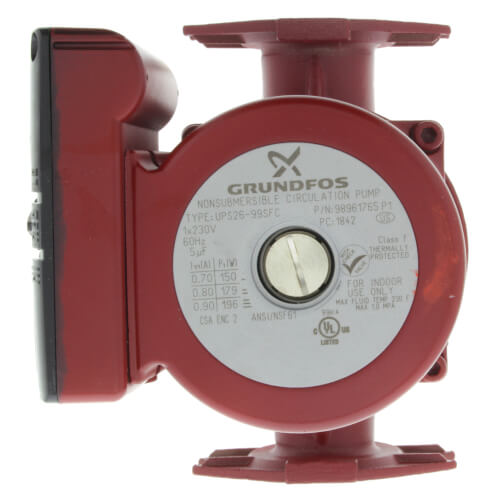

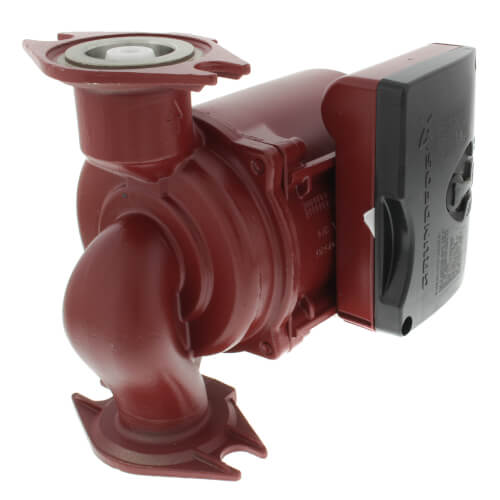

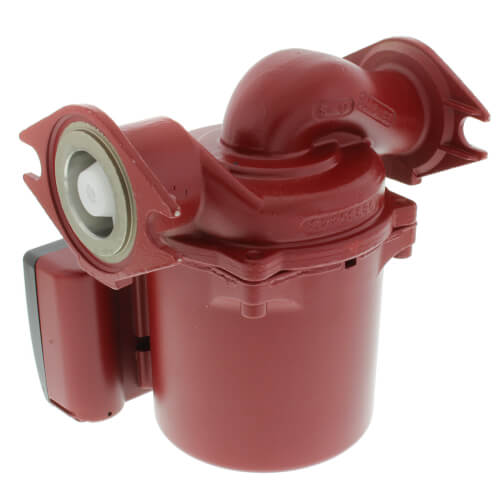

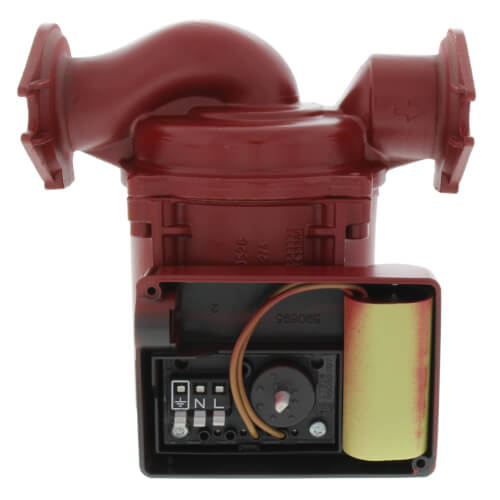

UPS26-99SFC, 3-Speed Stainless Steel Circulator Pump, 1/6 HP, 230 volt
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$798.64 each
In Stock
Order by today, receive Tuesday
MANUALS (2)
This item replaces: 98961760, 52722346, 52722519, 52722320
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230V
1/6 HP
Flanged x Flanged Connection
33 MAX GPM
145 MAX PSI
0.9 Amps
Description
–
The Grundfos UPS 26-99 SFC circulator pump is a high-efficiency solution designed for domestic hot water recirculation and radiant (underfloor) heating systems. This model features a corrosion-resistant stainless steel pump housing, making it ideal for potable water applications and systems where long-term durability is critical. The pump can be connected to an on/off timer switch, allowing operation only when hot water is needed. Therefore, helping to improve energy efficiency, reduce operating costs, and extend pump life. Engineered with a canned rotor (seal-less) design, the UPS 26-99 SFC integrates the pump and motor into a single, compact unit without a shaft seal. This design minimizes maintenance while improving reliability. The liquid-lubricated bearing system ensures quiet, stable operation and long-lasting performance.
- Corrosion-resistant stanless steel pump housing that is ideal for underfloor heating systems
- Built-in thermal overload switch to prevent overheating and ensures reliable, long-lasting pump performance
- Minimal maintenance and improved reliability
- Quiet operation for minimal noise and smooth, effcient performance
- Corrosion resistant impeller designed to prevent wear, improve efficiency, and extend the pump's lifespan
- Multi-speed operation for optimized flow control and improved energy efficiency in water circulation systems
Specs
–
| Amperage: | 0.9 |
|---|---|
| Frequency: | 60 Hz 60 Hz 60 Hz |
| Material: | Stainless Steel |
| Type: | 3-Speed Pump |
| Poles: | 2 |
| Speeds: | Multi-Speed |
| Mount: | In-Line |
| Application: | Heating |
| Voltage: | 230V |
| Max Pressure (PSI): | 145 |
| Horse Power: | 1/6 |
| Connection Size: | 3/4", 1", 1-1/4", 1-1/2" |
| Max Head (Ft): | 29 |
| Max Flow (GPM): | 33 |
| Head Range (ft.): | 0-29 |
| Flow Range (GPM): | 0-33 |
| Hertz: | 60 |
| Phase: | 1 |
| RPM: | 3380 |
| Temperature Range (F): | 36°F - 230°F |
| Connection Type: | Flanged x Flanged |
