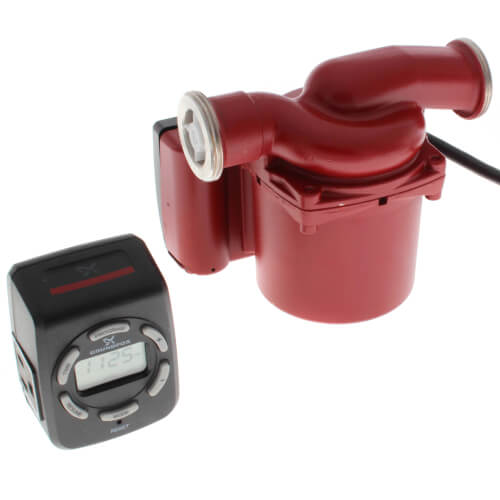

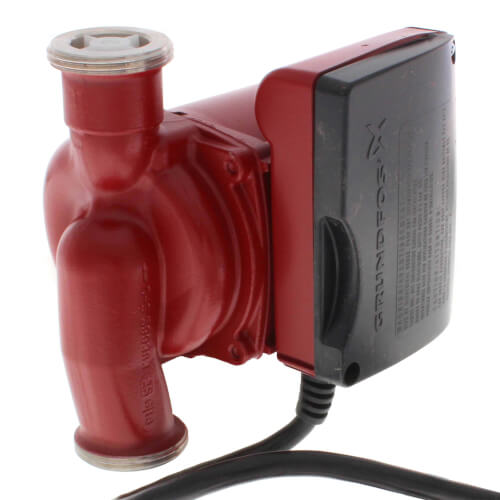

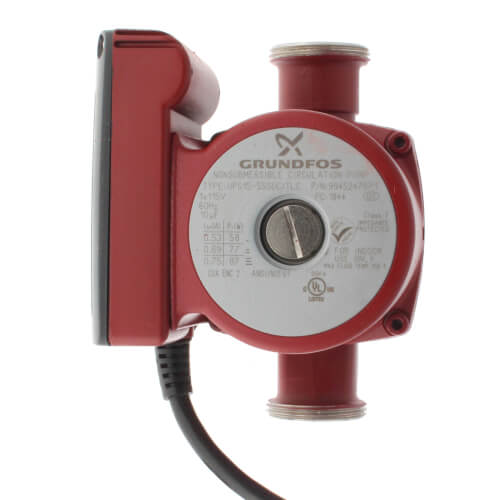

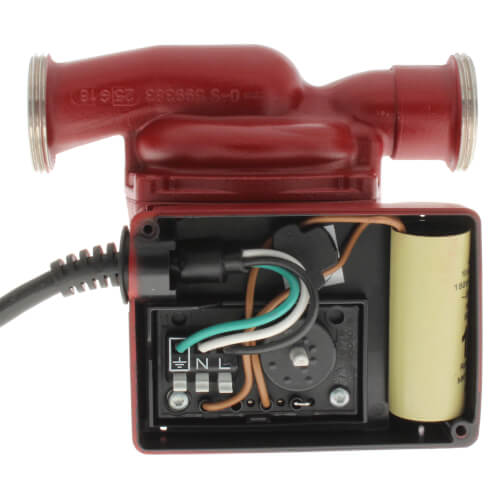

UPS15-55SUC/LC 3-Speed Stainless Steel Circulator Pump w/ Line Cord, 115V, 1/15 HP
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$725.61 each
In Stock
Order by today, receive Tuesday
This item replaces: 99452478, 59896783
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/15 HP
NPSM Union Connection
25.1 MAX GPM
145 MAX PSI
87 Watts
Description
–
The Grundfos UPS 15-55 SUC/TLC circulator pump is a compact, high-efficiency solution engineered with a corrosion-resistant stainless steel pump housing, making it ideal for domestic hot water recirculation and underfloor (radiant) heating systems. Designed for dependable performance, this Grundfos UPS pump ensures consistent water flow and long-lasting durability in residential and light commercial hydronic applications. For improved energy efficiency and system control, the UPS 15-55 can be paired with an external on/off timer switch, allowing the pump to operate only during peak hot water demand periods-reducing energy consumption and operating costs.The pump features a canned rotor construction, integrating the motor and pump into a single sealed unit. This seal-less design eliminates the need for a mechanical shaft seal and uses only two gaskets, reducing maintenance requirements and minimizing leak risks. The system is self-lubricating, as the pumped liquid lubricates the bearings for smooth, efficient operation.
- Stainless steel pump housing suitable for underfloor heating systems
- Compact design
- Maintenance-free
- Corrosion resistant impeller
- Quiet operation
- Multi-speed
Specs
–
| Wattage: | 87 |
|---|---|
| Frequency: | 60 Hz 60 Hz 60 Hz |
| Amperage: | 0.75 |
| Material: | Stainless Steel |
| Type: | 3-Speed Pump |
| Voltage: | 115V |
| Horse Power: | 1/15 |
| Speeds: | 3 |
| Max Head (Ft): | 18 |
| Max Flow (GPM): | 25.1 |
| Max Pressure (PSI): | 145 |
| Phase: | 1 |
| Mount: | In-Line |
| Connection Type: | NPSM Union |
