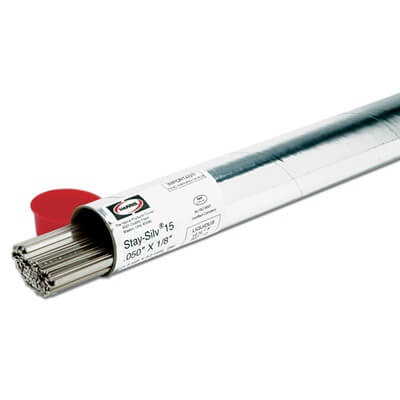

Harris Stay-Silv 15% Square Brazing Alloy Rods (10lbs. Tube)
Harris Stay-Silv 15% brazing alloy rod delivers reliable copper-to-copper joints in plumbing and HVAC applications. This 10-pound tube contains square-profile rods, each 36 inches long and 1/8 inch thick, formulated with 15% silver, 5% phosphorus, and 80% copper. The rods meet AWS BCuP-5 classification and require no flux when joining copper to copper.
Key Features & Benefits
Compatibility & Requirements
Use this alloy for copper-to-copper joints in plumbing, HVAC, and refrigeration systems. Apply external flux when joining copper to brass, bronze, or other dissimilar metals, as the phosphorus self-fluxing action works only on copper surfaces. The thicker square profile requires longer heating time compared to flat rods of the same width. Installation should be performed by a qualified technician who can verify local code requirements and match brazing temperature to the joint size and base metal thickness.
Installation & Care
Clean both joint surfaces with abrasive cloth or wire brush to remove oxides and contaminants. Assemble the joint with proper clearance, typically 0.002 to 0.005 inches for capillary action. Heat the joint evenly with an oxy-acetylene or oxy-propane torch, bringing both sides of the fitting to working temperature. Apply the rod to the joint, not directly to the flame, and allow capillary action to draw molten alloy into the gap. Avoid overheating, which can burn out the phosphorus and weaken the joint. Store unused rods in a dry location to prevent surface oxidation.
What's Included
Frequently Asked Questions
Q: Is flux required when brazing with Stay-Silv 15?
A: Flux is not required when brazing copper to copper because the 5% phosphorus acts as a self-fluxing agent. Use external flux when joining copper to brass, bronze, or other non-copper metals.
Q: What is the melting temperature of this brazing rod?
A: Harris Stay-Silv 15 (BCuP-5) has a solidus temperature of approximately 1190°F and a liquidus temperature of approximately 1480°F, with a working range between those points for capillary flow.
| Product Type: | Brazing Rod |
|---|---|
| Material: | 5% Phosphorus 80% Copper 15% Silver |
| Volume: | 10 lbs. |
| Application: | Plumbing |
