$3,285.83 each
In Stock
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Cast Iron
250 MAX PSI
3/4" NPT, 3/4" Connection
Description
–

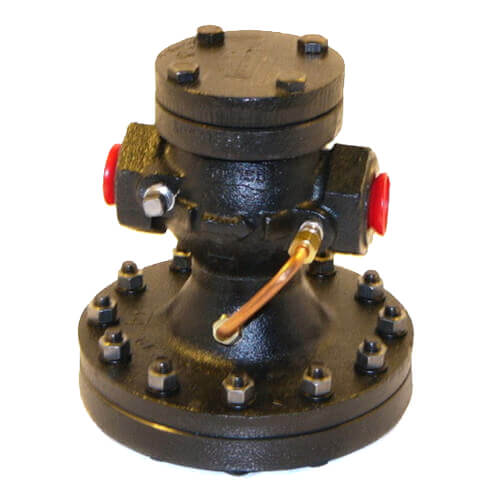

Hoffman Specialty Series 2000 Model 2100 pressure regulating valve with a 3/4" NPT connection and full port that consist of a main valve controlled by a single or combination of pilot control valves for steam service only. This valve is normally-closed and single-seated. It has an inlet pressure of 20 psi, a minimum differential pressure of 15 psi, a maximum pressure differential of 150 psi, and a maximum temperature of 450°F. It features a 2-ply stainless steel diaphragm provides greater accuracy of control over entire capacity range and a longer life, packless construction, positive travel stop and back up of diaphragm prevents over pressurizing from downstream (low-pressure) side, and maintains accurate and stable control of pressure or temperature.
Specifications:
Specifications:
- Model: 2100FP
- Part Number: 402442
- Valve Application: Steam
- Body Material: Cast Iron
- Piping Configuration: Straight
- Connection Size: 3/4"
- Connection Type: NPT
- Max Pressure: 250 psi WSP
Specs
–
| Material: | Cast Iron |
|---|---|
| Connection Size: | 3/4" NPT 3/4" |
| Max Pressure (PSI): | 250 |
