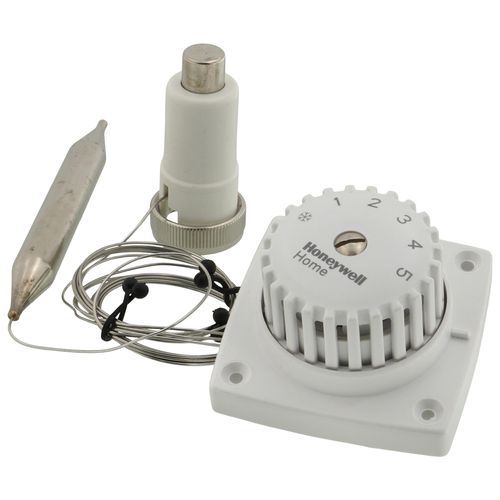

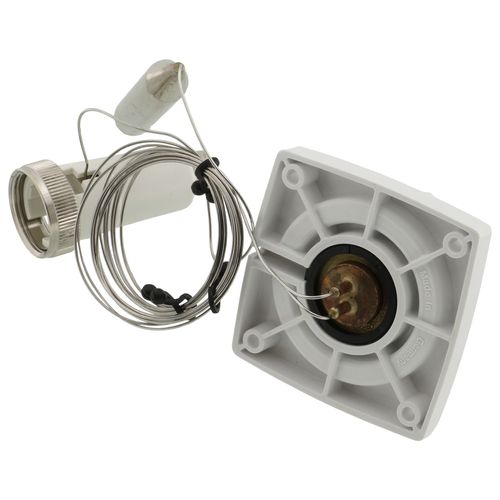

Remote Setpoint and Sensor for V100 and V2000 Series Radiator Valves (Dual Capillary)

Allow automatic temperature control in two-pipe steam or hot water systems for free standing radiators, convectors, and other heating units with standard capacity requirements. Provide comfort and energy savings at affordable prices.

Product Features:

• Continually monitors and adjusts room temperature for consistent comfort and relief from under-heating and overheating.
• Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
• Nickel plated brass casted body with working parts in cartridge insert for ease of service.
• Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
• Require no electrical connections.
• All working parts are replaceable using service tool (MT100C1016) while valve remains in service, in-line, under pressure.
• Valves normally open without control mounted.
• Valves may also be used with MV100 Electric Zone Valve Actuator.

Product Specifications:

• Description: Thermostatic Radiator Actuator with remote sensor, 2-4ft 6 in. capillary and 1-3/16 in. collar diameter
• Application Type : A control with remote setpoint and sensor mounted with setpoint dial on outside of heating cabinet; sensor mounted beneath heating coils in cold air return. Dual capillary. For V100 valves.
• Application: Standard Capacity Thermostatic Radiator Actuator
• Used with Valve: V100, V2000
• Sensor (integral or remote): Integral
• Setpoint (Integral or Remote): Remote
• Capillary Length (ft): (2) 4-1/2 ft.
• Temperature Range: 48 F to 79 F
• Collar Diameter: 1-3/16 in.
• Replaces: American Steam - 02-320-00. Taco - 5211. Danfoss RA2000 - 013G8233. Ammark - 74. TM Macon - TMLZ B52000. NT Macon - NTL B55000. (in combination with V100)
