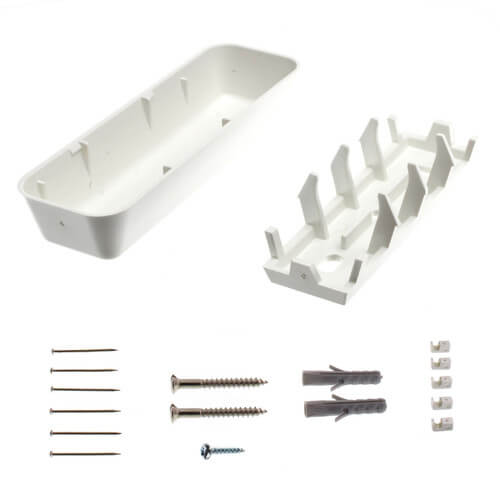

Remote Sensing and Integral Setpoint for V100 and V2000 Series Radiator Valves

Used with Valve: V100, V2000
Valves may also be used with MV100 Electric Zone Valve Actuator.

Allow automatic temperature control in two-pipe steam or hot water systems for free standing radiators, convectors, and other heating units with standard capacity requirements. Provide comfort and energy savings at affordable prices.

Product Features:

• Continually monitors and adjusts room temperature for consistent comfort and relief from under-heating and overheating.
• Valve seat disc, which is made of resilient material (EPDM), ensures tight shutoff on steam or hot water systems.
• Nickel plated brass casted body with working parts in cartridge insert for ease of service.
• Controls include sensor, setpoint dial and valve actuator; components may be integral or connected by capillary tubes.
• Require no electrical connections.
• All working parts are replaceable using service tool (MT100C1016) while valve remains in service, in-line, under pressure.
• Valves normally open without control mounted.

Product Specifications:

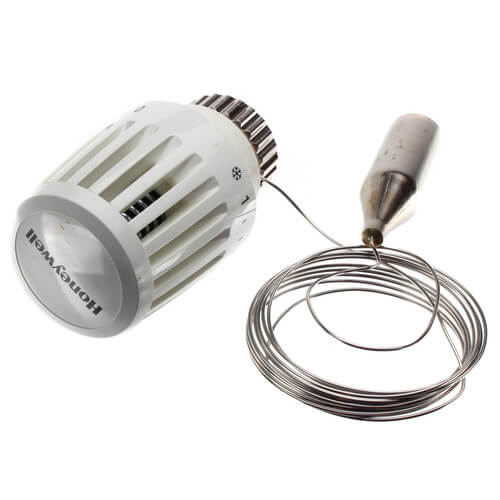

• Description: Thermostatic Radiator Actuator with remote tempearture sensing and integral sensor and 1-3/16 in. collar diameter
• Application Type : Thermostatic radiator valve controller for use with V100 series valves. With remote temperature sensing and integral set point. Adjustable limits.
• Application: Standard Capacity Thermostatic Radiator Actuator
• Sensor (integral or remote): Integral
• Setpoint (Integral or Remote): Integral
• Capillary Length (ft): 6 ft. 8 in.
• Temperature Range: 43 F to 79 F
• Collar Diameter: 1-3/16 in.
• Replaces: American Steam - 02-120-00. Taco - 5203. Danfoss RA2000 - 013G8202. Ammark - 73. TM Macon - TMZ B32000. NT Macon - NTZ B35000. (in combination with V100)
• Comments: Adjustable Limits
