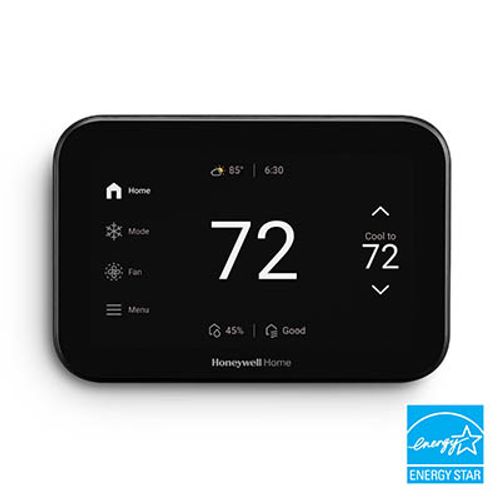

ElitePRO S1200 Smart Kit w/ RedLINK and EIM (Black), THX1200B6

The ElitePRO S1200 Smart Thermostat delivers modern design, a 5" customizable touchscreen, and advanced indoor air quality (IAQ) control. Homeowners can even see and speak to visitors at the door directly from the thermostat. Combined with the Pro-IQ services, you can super-charge your business. Additional HVAC equipment or accessories may be required

Features

• Features: Video Doorbell Integration
• Features: Customizable Touchscreen Display
• Features: IAQ Monitoring and Control
• Features: Smart Home Enabled
• Features: ENERGY STAR Certified
• Features: Utility Rewards
• Features: WiFi

Specifications

• Application: Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control.
• Product Features: Time-Based or Smart Away programming for energy efficency, Includes Onboard Radar Sensor, Allows Air quality monotoring, VX1 or Ring Doorbell Compatibility
• Stages: Up to 4H/2C Heat Pump or 3H/3C Conventional
• Smart Home Integration: Yes
• Display Size: 5 sq. in
• Touchscreen: Yes
• Display Language: Display selectable for English, French, or Spanish
• Modes of Operation: Heat, Off, Cool, Auto, Emergency Heat
• Energy Star Certified: Yes
• Heat-Cool Changeover: Auto or Manual
• Power Supply: Hardwired, C-Wire required
• Power Source: Hardwired, C-Wire required
• Warranty: 5 Years
• Includes: ElitePRO S1200 Smart Thermostat in Black, UWP Wall Plate, Cover Plate with J-Box Adapter, Hardware, Literature
• For Use With: C7189R3010-2 room sensor
• WiFi: Yes
• RedLINK: Yes, 3.0
• Color: Black
• Ambient Operating Temperature (Max): 102 F, 38.9 C
• Ambient Operating Temperature (Min): 37 F, 2.8 C
• Operating Relative Humidity (Max): 90 % RH
• Operating Relative Humidity (Min): 5 % RH
• Auto Changeover: Yes
• Humidity Set point (Max): 90% RH
• Humidity Set point (Min): 0% RH
• Number of Fan Speeds: Up to 3 Fan Speeds for Fan Coil Units
• Power Supply Frequency: 60 Hz
• Set point Temperature (Max): Heat: 90 F, Cool: 99 F, Heat: 32 C, Cool: 37 C
• Set point Temperature (Min): Heat: 40 F, Cool: 50 F, Heat: 4.5 C, Cool: 10 C
• Shipping and Storage Temperature (Max): 120 F, 49 C
• Shipping and Storage Temperature (Min): -20 F, -29 C
• Mounting Location: J-Box, Horizontal Mount to wall
• Product Height: 3.54 in, 90 mm
• Product Width: 5.25 in, 133 mm
• Product Weight: 0.91 lb
• Product Depth: 0.96 in , 24 mm
