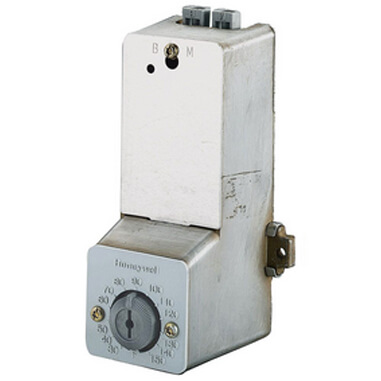

Pneumatic Remote Bulb Thermostat Direct Acting (65 to 85 F)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
LP916B1058 has been discontinued
Discontinued November 23, 2023
This product was discontinued by the manufacturer.
MANUALS (2)
Product Highlights
–
65°F to 85°F
135°F Max Temp
Description
–
Two-pipe, single temperature, unit mounted, remote bulb pneumatic thermostat used to provide proportional control of pneumatic valves and damper actuators in heating and air conditioning systems.
Features
Specifications
Features
- Liquid filled remote bulb
- Direct Acting (DA), Reverse Acting (RA) and Heating/Cooling (DA/RA) models are available.
Specifications
- Remote Bulb: Yes
- Setpoint: Single
- Number of Pipes: 2
- Air Connections: Barb fittings 1/4 in. (6 mm)
- Sensor: Bulb 1/2 x 5 7/8 in., capillary 36 in. (914 mm) long
- Changeover Pressure:Heat 18 psi, Cool 9 psi
Specs
–
| Application: | Pneumatic |
|---|---|
| Temperature Range (F): | 65°F to 85°F |
| Max Temp (F): | 135°F |
| Action: | Reverse Cooling Direct Heating |
