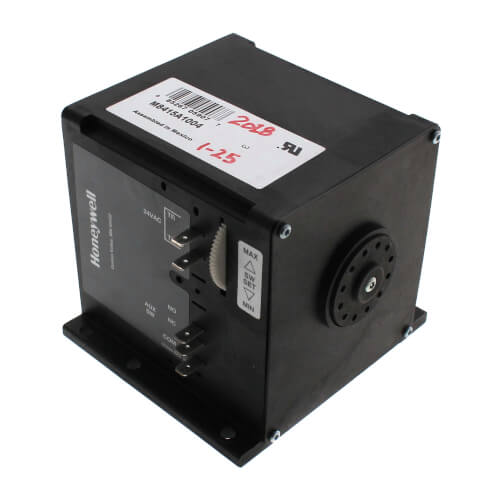

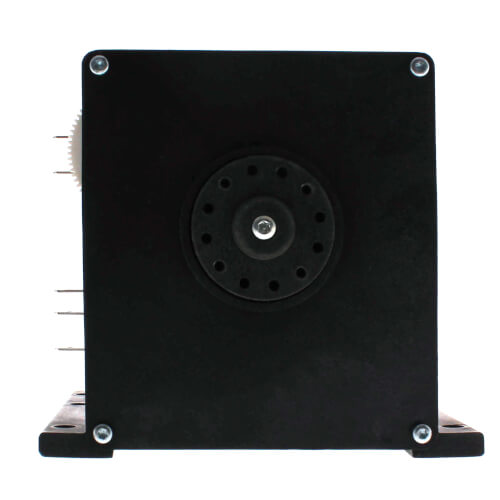

24 Vac Spring return-foot mounted, 2 position, 2 wire w/ field adj. min. pos

25 lb-in. spring return damper actuators provide two-position, three-position, floating, or modulating control of economizer systems, ventilation dampers and combustion air dampers used in residential or commercial HVAC equipment.

Features

• Synchronous Motor.
• Quiet, high efficiency drive motor.
• Spring returns motor shaft to normal position on power interruption.
• High impact, glass-fiber reinforced plastic case is rugged, lightweight and corrosion resistant.
• Uses Q298B Linkage.

Specifications

• Description: Spring return-foot mounted, 2 position, 2 wire w/field adj. min. pos., 24 Vac
• Control Signal: 2 Position,SPST
• Fail Safe Mode: Spring Return
• Rotation To Open: CCW
• Torque Rating (lb-in.): 25 lb-in
• Torque Rating, Breakaway (lb-in.): 25 lb-in
• Fixed Stroke: Yes
• Timing Min (sec): 90 Sec
• External Auxiliary Switches Available: yes
• Frequency: 50, 60 Hz

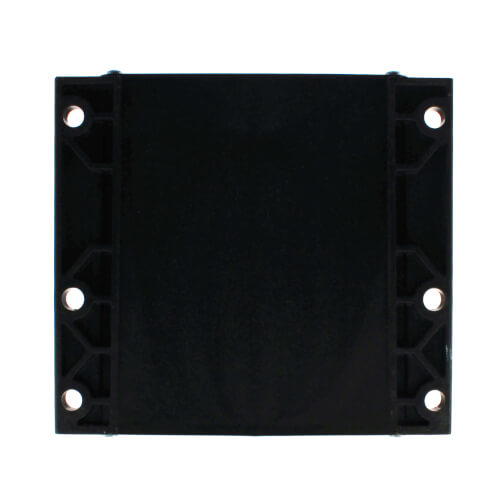

• Mounting: foot mounted
• Temperature Range, Operating (F): -25 to 125F
• Timing Opening, Nominal (sec): 90 Sec
