R7284P1080 has been discontinued
Discontinued November 13, 2018
This product was discontinued by the manufacturer.
Product Highlights
–
Interrupted, Intermittent
4-5/32"
2-1/2"
-40°F to 147°F
Description
–

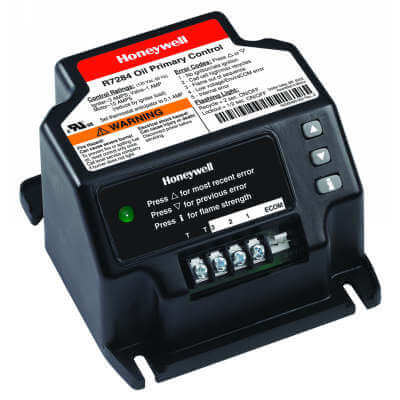

The R7284 oil primary is a microprocessor oil control, engineered to address and anticipate every industry need. Designed with a host of new benefits, every setting and diagnostic is user-friendly displayed and available in multiple languages.
- Dimensions (in.): 4 5/32 in. long x 4 11/32 in. wide x 2 1/2 in. high
- Temperature Range (F): -40 F to +147 F
- Temperature Range (C): -40 C to +64 C
- Mounting Junction box on main burner
- Approvals, Underwriters Laboratories Inc.UL and cUL Component Recognized
- Electrical Connections: Burner motor, oil valve, ignition, cad cell, limit, thermostat, alarm
- Ignition Type: Interrupted and Intermittent
- Display: 2 Line LCD display
- Timing, Safety Switch: 15 sec.
- Electrical Ratings, Contacts (full load): 7.4 A @ 120 Vac; 3.7 a @ 240 VacElectrical Ratings, Contacts (locked rotor)44.4 A @ 120 Vac; 22.2 A @ 240 Vac
Specs
–
| Ignition Type: | Interrupted Intermittent |
|---|---|
| Timing: | 15 seconds |
| Display: | 2 Line LCD Display |
| Length: | 4-5/32" |
| Width: | 4-11/32" |
| Height: | 2-1/2" |
| Temperature Range (F): | -40°F to 147°F |
